Power Window Control Switch: Removal

1. Remove the trim panel - front door. Ref. to EXTERIOR/INTERIOR TRIM > Door Trim > FRONT DOOR .
2. Remove the panel - power window main switch.
   CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
   1. Remove the screws and disconnect the connector.

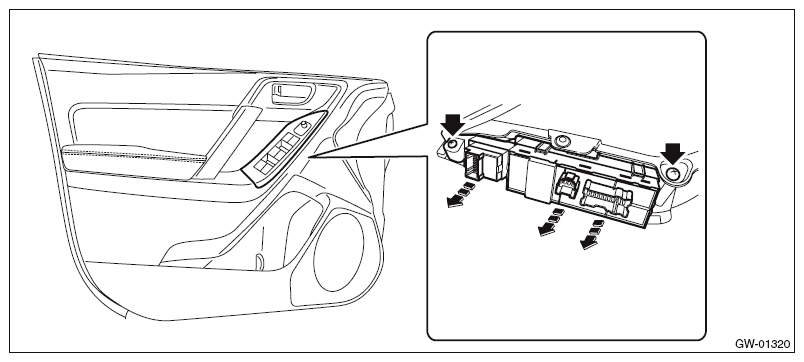

      Fig 1: Removing Power Window Main Switch Panel

      Courtesy of SUBARU OF AMERICA, INC.
   2. Release the claws, and then remove the panel - power window main switch.

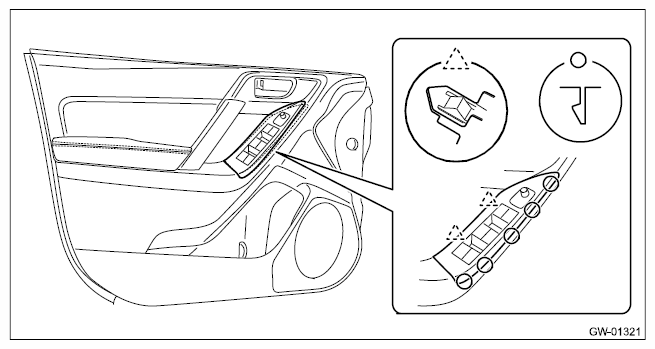

      Fig 2: Identifying Power Window Main Switch Panel Claws

      Courtesy of SUBARU OF AMERICA, INC.
   3. Release the claws, and then remove the switch - power window main.

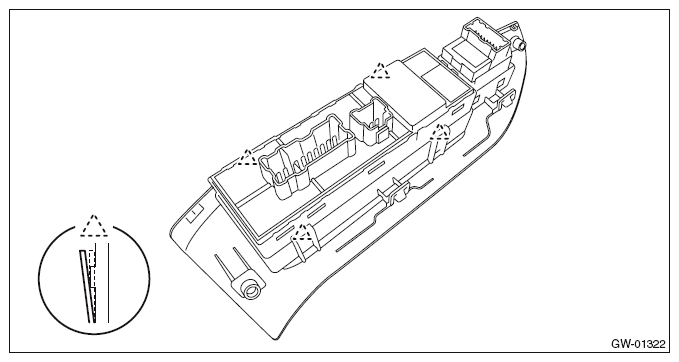

   Fig 3: Identifying Power Window Main Switch Claws

   Courtesy of SUBARU OF AMERICA, INC.

Switch - power window sub front

For removal of the switch - power window sub front on the passenger's seat, refer to the removal procedure of the switch - power window main. Ref. to GLASS/WINDOWS/MIRRORS > POWER WINDOW CONTROL SWITCH  > MAIN SWITCH.

Switch - power window sub rear

1. Remove the trim panel - rear door. Ref. to EXTERIOR/INTERIOR TRIM > Door Trim > REAR DOOR .
2. Remove the panel - power window sub switch rear.
   CAUTION: Be careful not to damage the trim panel - rear door with the panel - power window sub switch rear.
   1. Insert a sheet of protective paper (a) between panel - power window sub switch rear and trim panel - rear door.
   2. Remove the screws and disconnect the connector.

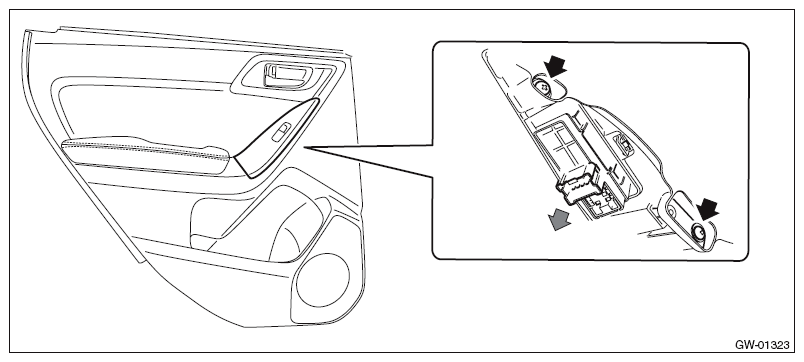

      Fig 4: Locating Power Window Sub Switch Rear Panel

      Courtesy of SUBARU OF AMERICA, INC.
   3. Release the claws, and then remove the panel - power window sub switch rear.

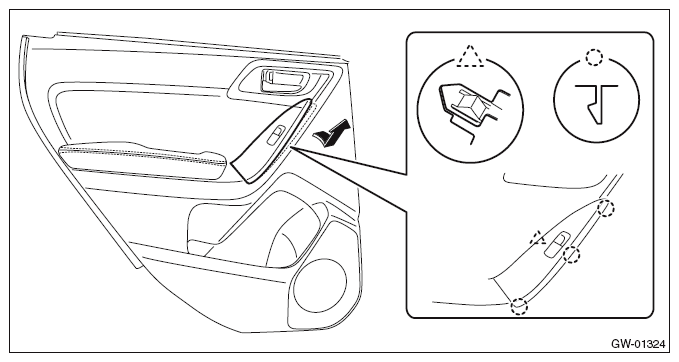

      Fig 5: Removing Power Window Sub Switch Rear Panel

      Courtesy of SUBARU OF AMERICA, INC.
3. Release the claws, and then remove the switch - power window sub rear.

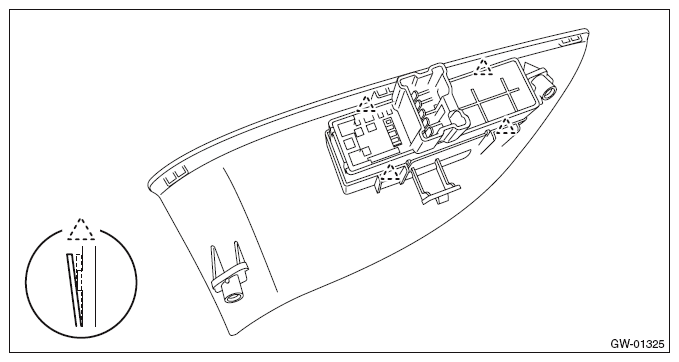

Fig 6: Identifying Power Window Sub Rear Switch Claws

Courtesy of SUBARU OF AMERICA, INC.
