Remote Control Mirror Switch: Removal

  1. Remove the panel - power window main switch. Ref. to GLASS/WINDOWS/MIRRORS > Power Window Control Switch >  MAIN SWITCH   .
  2. Release the claws, and then remove the switch - door mirror.

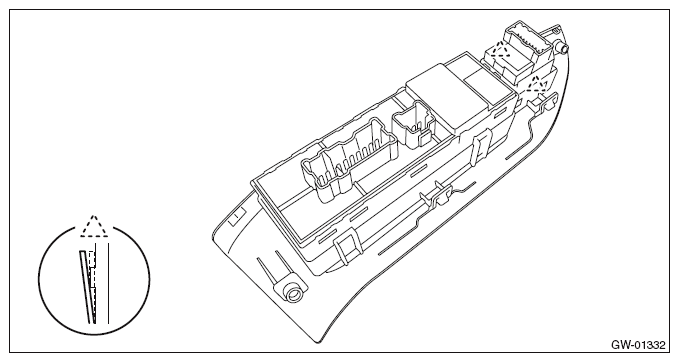

Fig 1: Identifying Door Mirror Switch Claws
G09484459Courtesy of SUBARU OF AMERICA, INC.
