Data Communication Module

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the center grille assembly. < Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille. >
  3. Remove the heater control assembly. < Ref. to REMOVAL , Control Panel. >
  4. Remove the audio assembly or navigation assembly. < Ref. to REMOVAL , Audio. >
  5. Remove the data communication module.
    1. Remove the screws.
    2. Remove the audio bracket or navigation bracket, and then remove the data communication module.
    CAUTION: Do not drop or apply any impact to the data communication module.

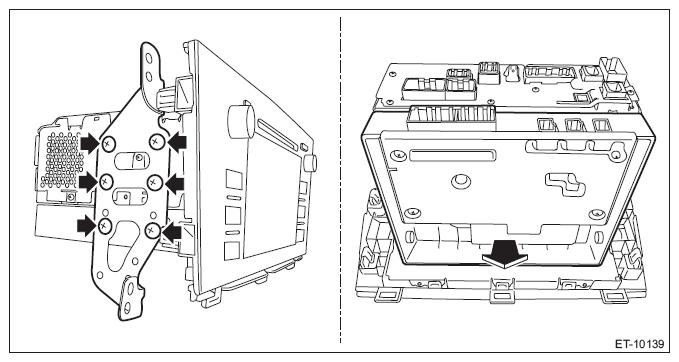

    Fig 1: Removing Data Communication Module
    G10309166Courtesy of SUBARU OF AMERICA, INC.
