Control Module

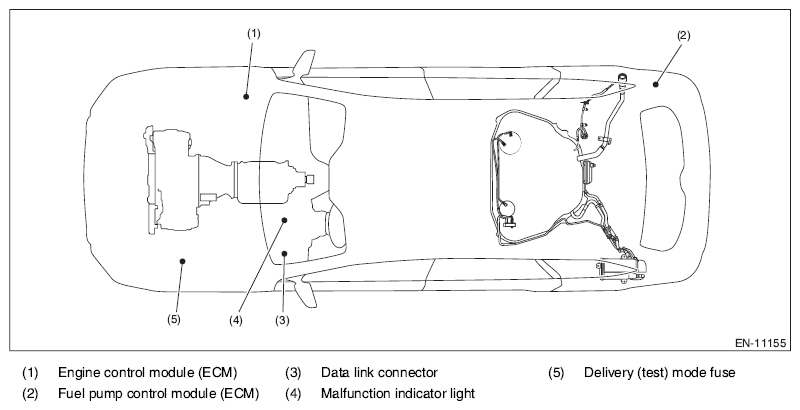

Fig 1: Vehicle Control Module Component Location (1 Of 2)
G10312324Courtesy of SUBARU OF AMERICA, INC.

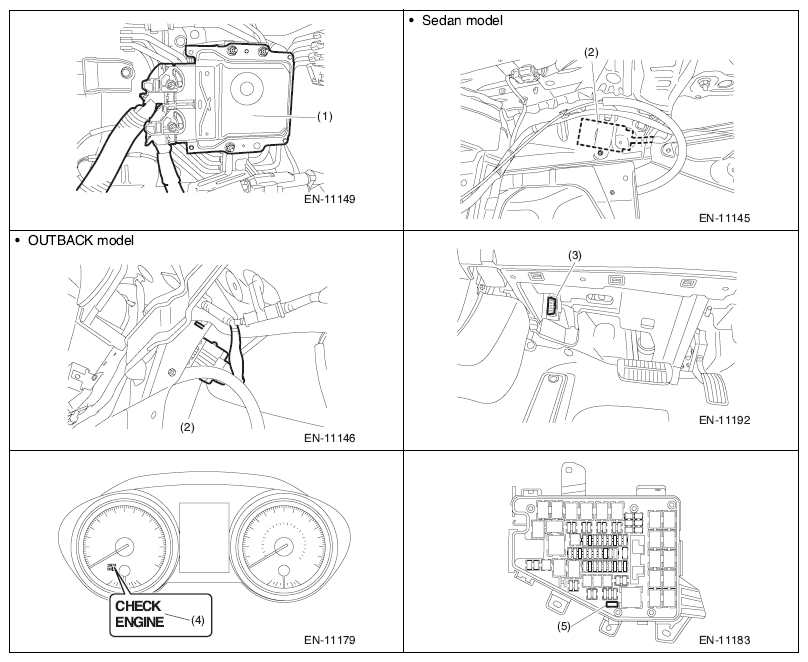

Fig 2: Vehicle Control Module Component Location (2 Of 2)
G10312325Courtesy of SUBARU OF AMERICA, INC.
