Check Each Connection

Turn the ignition switch to ACC.
Press the button (b) twice with the button (a) pressed.

Fig 1: Identifying Ignition Switch Button
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Pressing the button (c) for 3 seconds or more, or turning the ignition switch from the OFF to ACC position can exit the diagnostic mode.
{Line Diag} screen is displayed.
Check the connection status with the {Connectivity Check} in the {Line Diag} screen.

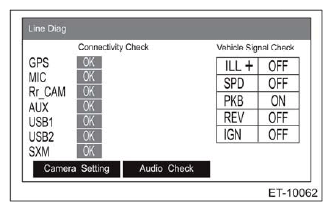

Fig 2: Screen Display Line Diag
Courtesy of SUBARU OF AMERICA, INC.

NOTE: GPS is displayed only for the navigation system.
OK: Each connection device is connected properly.
NG: No connection or abnormal connection is detected.

NOTE: Check the external connection terminals (USB 1, 2 and AUX) by connecting a memory for check or a pin jack.
Check the connection status of the connector. If there are no problems, the connection device or unit could be faulty.
