Check Radio Frequency Range Switch-Over

NOTE: Some items are not displayed according to destination.

Turn the ignition switch to ACC.
Press the AUDIO/TUNE knob (b) five times with the HOME button (a) pressed to display the {Service Menu} screen.
Touch {Function Check/Setting} (c) to display the {Function Check/Setting} screen.
Touch {Radio Setting} (c) to display the {Radio Setting} screen.

Fig 1: Screen Display Radio Frequency Range Switch-Over
Courtesy of SUBARU OF AMERICA, INC.

Touch the {Freq} 1 to {Freq} 6 keys to switch the radio frequency range.

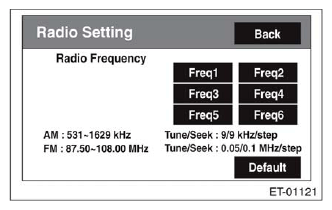

Fig 2: Screen Display Radio Setting

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Pressing the HOME button (a) or turning the ignition switch from the OFF to ACC position can exit the service diagnostic mode.
The initial settings is at Freq1.
