Anti-Theft System - Security And Locks: Receiver: Removal

NOTE: Except for models without keyless access with push button start.

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Remove the trim panel assembly - rear shelf. < Ref. to REMOVAL , Rear Shelf Trim. >
Remove the receiver assembly.
1. Disconnect the connector.
2. Remove the bolt and remove the receiver assembly.
  NOTE: For models with power amplifier, installation position of the receiver assembly is different.

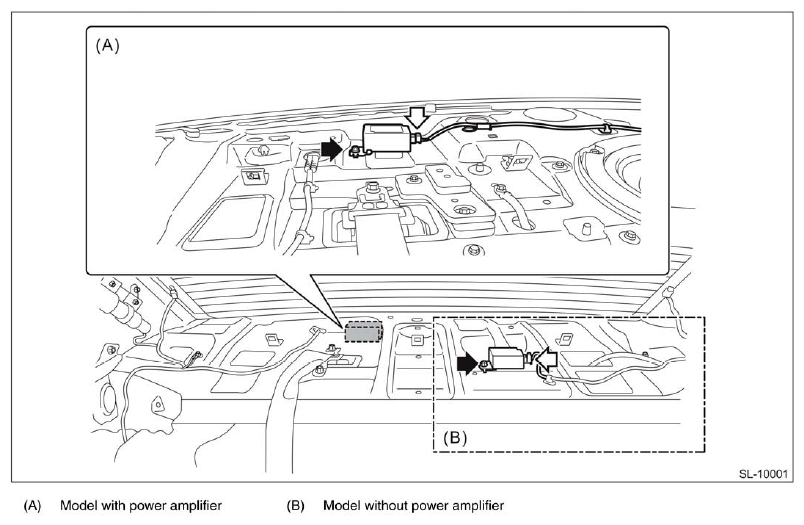

  Fig 1: Locating Receiver Assembly Connector
  Courtesy of SUBARU OF AMERICA, INC.
