Weather Strip

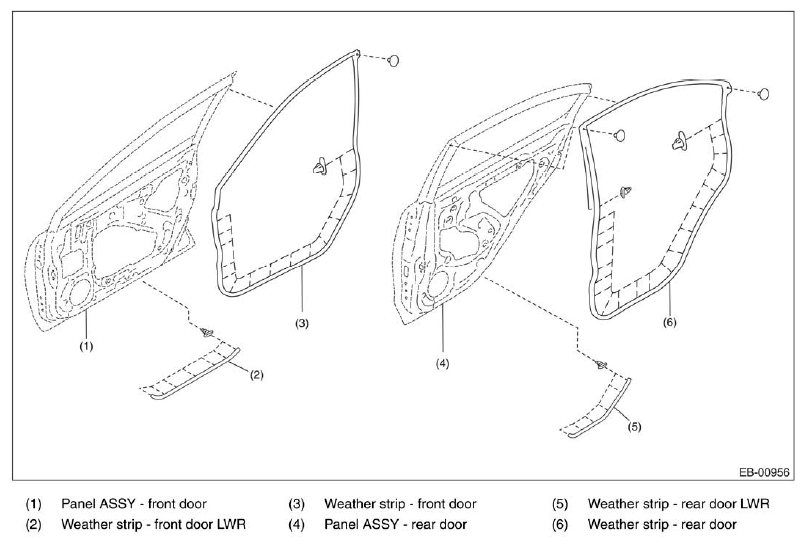

Fig 1: Exploded View Of Weather Strip
G10299179Courtesy of SUBARU OF AMERICA, INC.

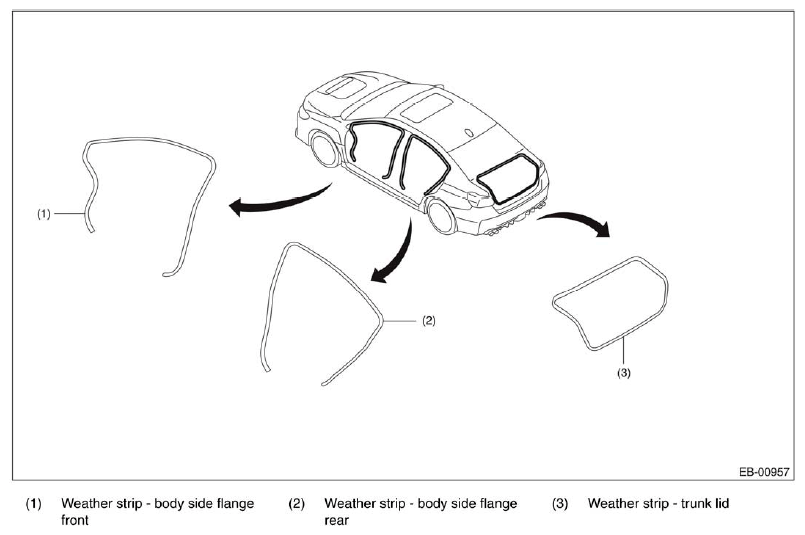

Fig 2: Exploded View Of Weather Strip
G10299180Courtesy of SUBARU OF AMERICA, INC.
