Multi-Function Display Switch

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the center grille assembly. < Ref. to CENTER GRILLE ASSEMBLY , REMOVAL, Air Vent Grille. >
  3. Release the claws and remove the switch - multi-function display.

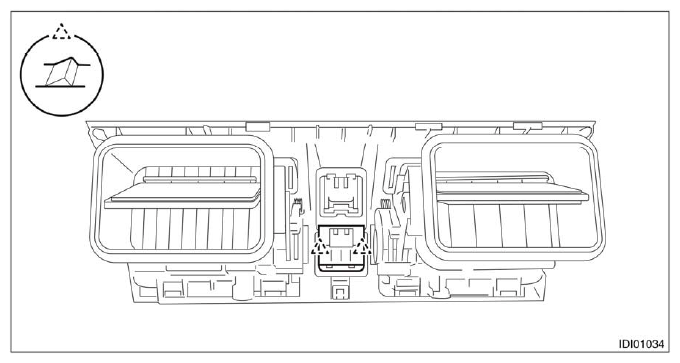

    Fig 1: Identifying Multi-Function Display Switch Claws
    G10298804Courtesy of SUBARU OF AMERICA, INC.
