When Removing Front CROSSMEMBER

  1. Remove the front crossmember. < Ref. to REMOVAL , Front Crossmember. >
  2. Remove clip (A) from the oil pan upper, and remove the oil level switch.

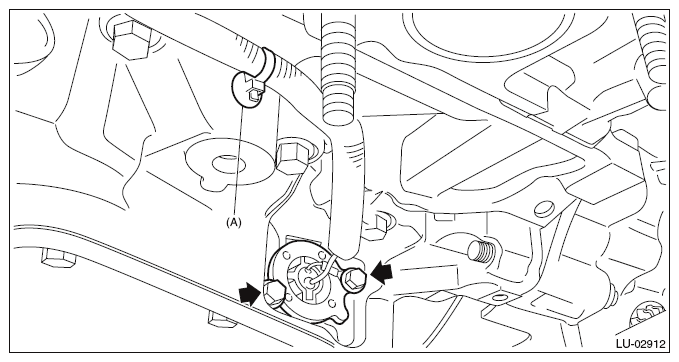

    Fig 1: Identifying Oil Pan Upper Clip With Bolts
    G09476529Courtesy of SUBARU OF AMERICA, INC.
