Oil Pressure Switch: Installation

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Fig 1: Identifying Liquid Gasket Applying Area On Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to the chain cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

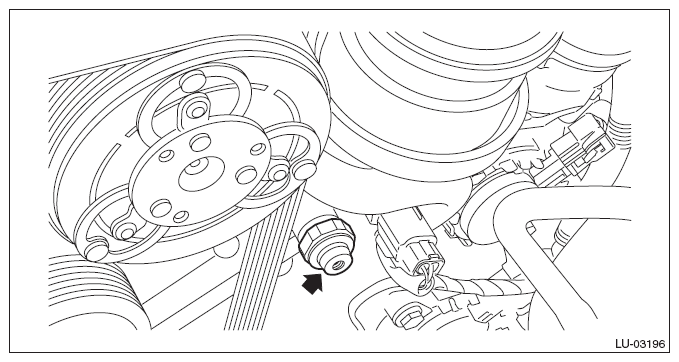

Fig 2: Locating Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.
NOTE: The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

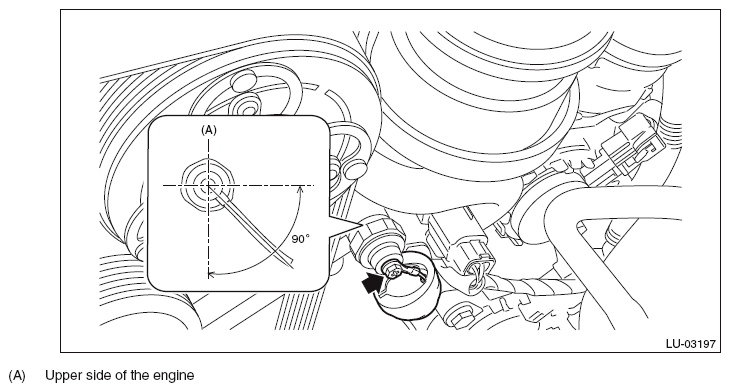

Fig 3: Identifying Oil Pressure Switch Tightening Angle
Courtesy of SUBARU OF AMERICA, INC.
Attach the rubber cap.

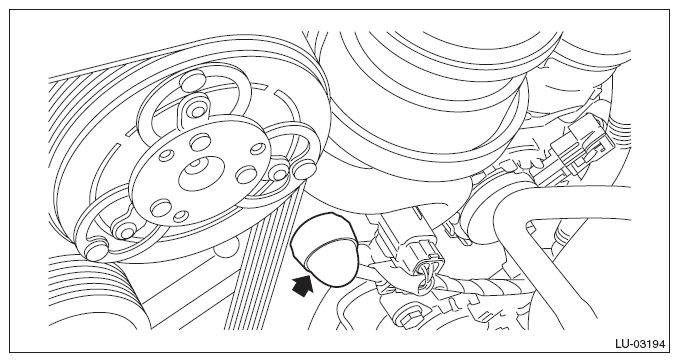

Fig 4: Locating Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Note. >
