Driver's Airbag Module

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  3. Remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL

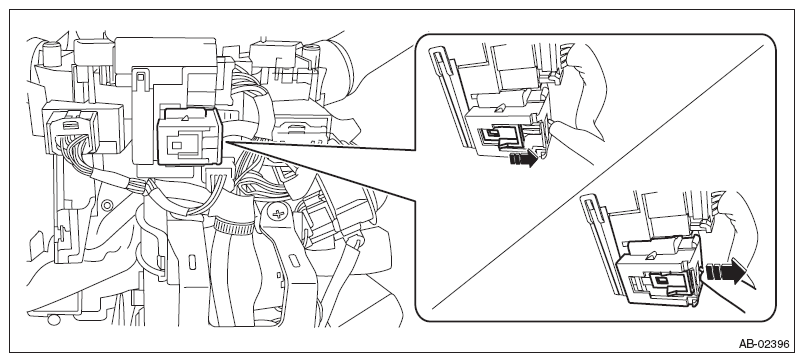

  4. Disconnect the connector under the steering roll connector. Ref. to AIRBAG SYSTEM>AIRBAG CONNECTOR>PROCEDURE>STEERING ROLL CONNECTOR
    G10270493Courtesy of SUBARU OF AMERICA, INC.
  5. Cut off the body harness approx. 70 mm (2.76 in) from the edge of the removed body side connector.
    G10270494Courtesy of SUBARU OF AMERICA, INC.
  6. Using a wire stripper or similar, peel off the shield (approx. 20 mm (0.79 in)) from the harnesses of the removed body side connector (at 4 locations).
    G10270495Courtesy of SUBARU OF AMERICA, INC.
  7. Twist the end of harness as shown in the figure.
    G10270496Courtesy of SUBARU OF AMERICA, INC.
  8. Prepare vinyl-shielded parallel wires of 6 m (19 ft) long. Peel off the ends of the shields of each wire approx. 20 mm (0.79 in), and fabricate one end of a wire into an alligator clip, and one end of the other wire into a terminal.
  9. Short the terminal to the alligator clip.
    G13869871Courtesy of SUBARU OF AMERICA, INC.
    NOTE:

    No concern about polarity.

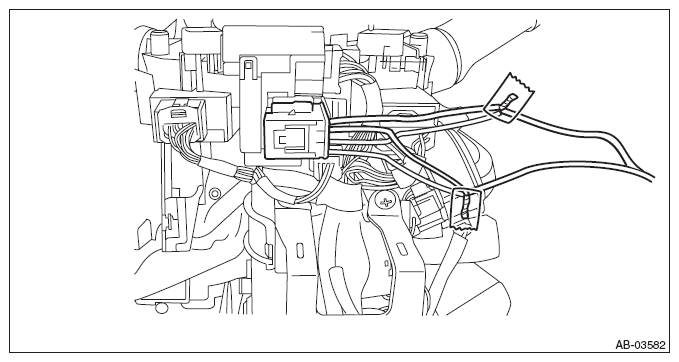

  10. Connect the other end of each wire to the harnesses of the modified body connector as shown in the figure, and insulate them with vinyl tape.
  11. After completing the connecting work, connect the body side connector to the connector of the airbag connector lower side again.
    G10270498Courtesy of SUBARU OF AMERICA, INC.
  12. Bring the vinyl-shielded parallel wire for operation out of the vehicle, and make sure there is no person in the vehicle.
  13. Extend the vinyl-shielded parallel wire prepared in the previous procedure to the limit, and close all the windows and sunroof completely.
    G10270499Courtesy of SUBARU OF AMERICA, INC.
  14. Move the battery at least 5 m (16 ft) from the vehicle, and confirm safety in the area.
  15. Connect the alligator clip of vinyl-shielded parallel wire to the battery negative (-) terminal.
  16. Connect the other terminal of vinyl-shielded parallel wire to the battery positive (+) terminal, and activate the airbag module.
    CAUTION:
    • After activation, the airbag module will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
    • Do not expose the activated airbag module to water.
    G13622734Courtesy of SUBARU OF AMERICA, INC.
  17. Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL
  18. Place the activated airbag module in a sealed vinyl bag, then discard.
    G10270501Courtesy of SUBARU OF AMERICA, INC.
