Curtain Airbag Module

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

The curtain airbag module cannot be reused if removed from the vehicle once, even if it has not operated yet.

NOTE:

Mounting bolts can be reused.

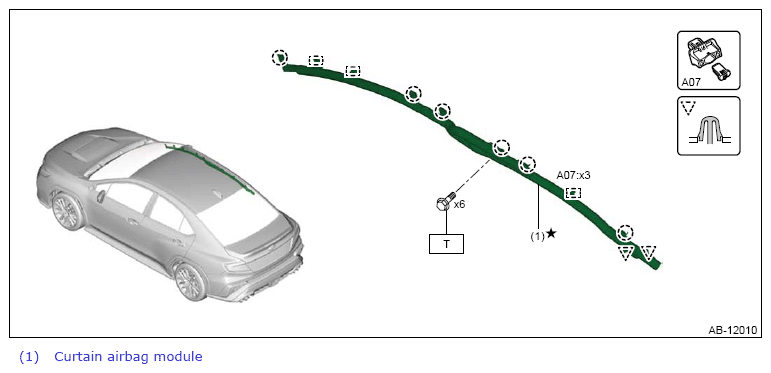

Fig 1: Curtain Airbag Module Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
