Torque Converter Assembly And Converter Case

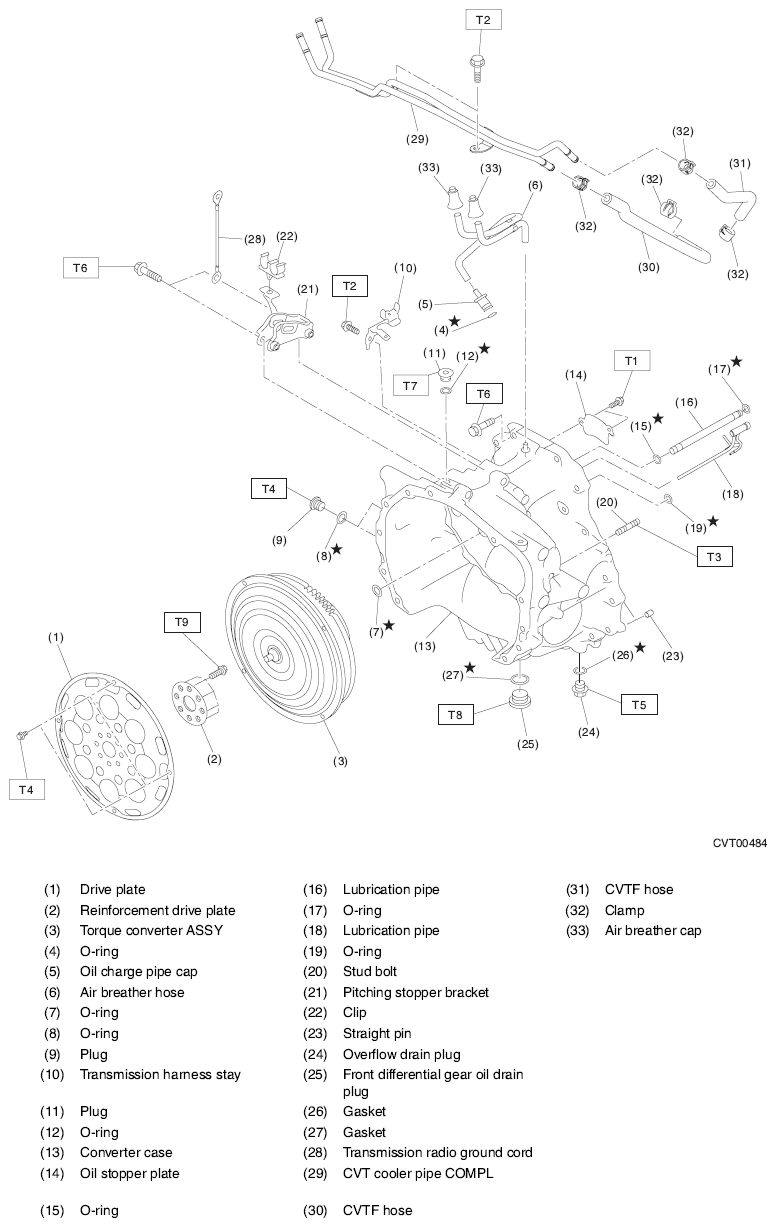

Fig 1: Exploded View Of Torque Converter Assembly And Converter Case

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9 (0.9, 6.6)

T2: 16(1.6, 11.8)

T3: 18 (1.8, 13.3)

T4: 25(2.5, 18.4)

T5: 35(3.6, 25.8)

T6: 41 (4.2, 30.2)

T7: 50 (5.1, 36.9)

T8: 70(7.1, 51.6)

T9: < Ref. to  INSTALLATION  , Drive Plate. >
