Transmission Control Device: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
Remove the oil pan and control valve body. < Ref. to REMOVAL , Control Valve Body. >
Remove the inhibitor switch. < Ref. to REMOVAL , Inhibitor Switch. >
Remove the spring pin.
NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.

Fig 1: Locating Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt and remove the range select lever, manual plate and parking rod.
NOTE: Do not damage the lip of oil seal press-fitted in the case.

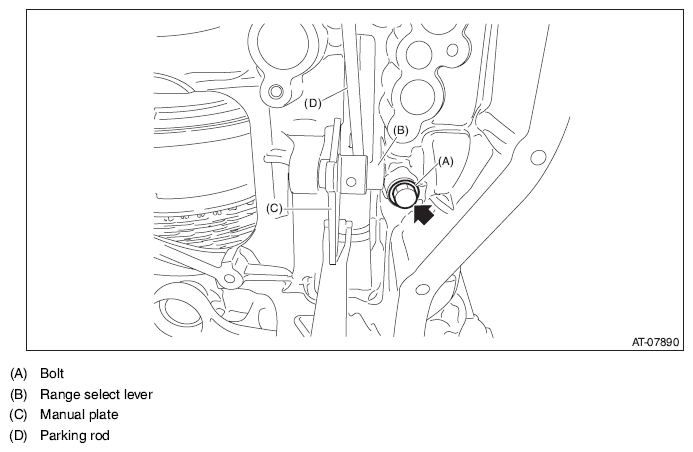

Fig 2: Identifying Range Select Lever, Manual Plate And Parking Rod With Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the detent spring.

Fig 3: Locating Detent Spring Bolt
Courtesy of SUBARU OF AMERICA, INC.
