Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

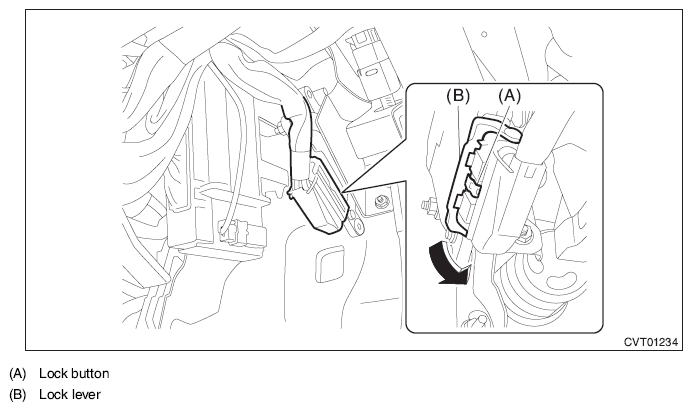

Fig 1: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM.

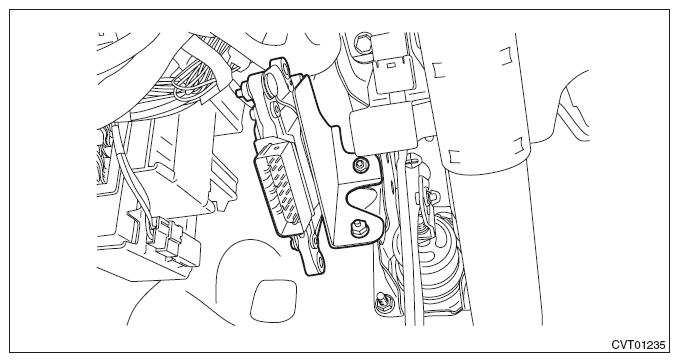

Fig 2: Identifying TCM
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM from the bracket.

Fig 3: Identifying TCM Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
