Reprogramming For Vehicle Information Registration Menu Display (07-100-15)
Publication date: 2015-11-10Reference number: 07-100-15
REPROGRAMMING FOR VEHICLE INFORMATION REGISTRATION MENU DISPLAY
TECHNICAL SERVICE BULLETIN
Reference Number(s): 07-100-15, Date of Issue:
November 10, 2015
| SUBARU: | 2016 WRX |
APPLICABILITY
2016MY WRX Models with EyeSight
INTRODUCTION
This bulletin announces the availability of reprogramming files for the EyeSight system to provide proper function of the Vehicle Information Registration menu. In rare cases, when attempting to perform the Camera Initialization procedure after repair or replacement, it cannot be completed because the required Vehicle information Registration menu cannot be displayed.
PRODUCTION CHANGE INFORMATION
The new logic was incorporated into production June 18, 2015 on VIN G*808423.
PACK FILE APPLICABILITY
| MODEL YEAR/MODEL | NEW PART NUMBER | PAK FILE NAME | OLD PART NUMBERS | TARGET CONTROL SOFTWARE VERSION | DECRYPTION KEYWORD | NEW CONTROL SOFTWARE VERSION |
|---|---|---|---|---|---|---|
| 2016MY WRX 2.0L Turbo | 87501VA013 | 87501VA013.pak | 87501VA011, 012 | 00006393 | 762E7C42 | 000063B1 |
SERVICE PROCEDURE / INFORMATION

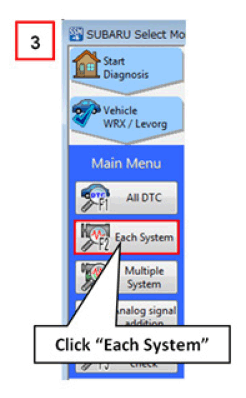

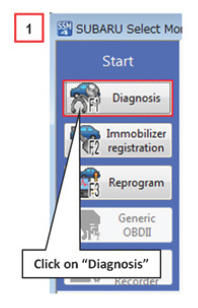

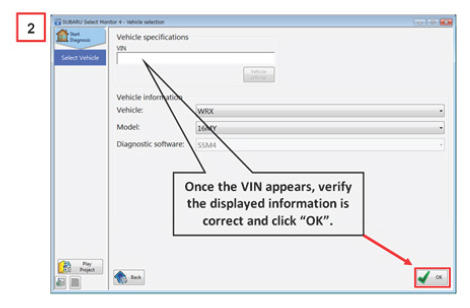

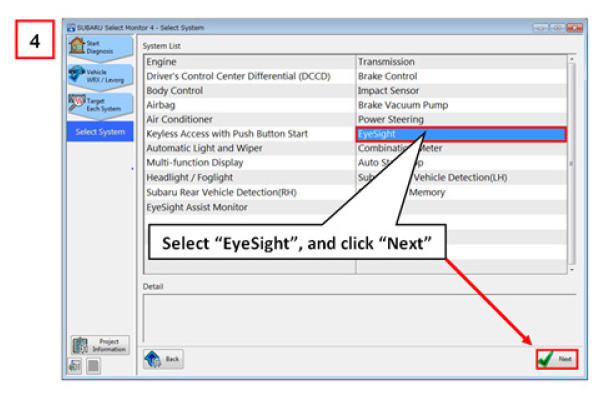

- Connect the SSMIV / DST-i and follow the steps as shown in the screen shots shown below:

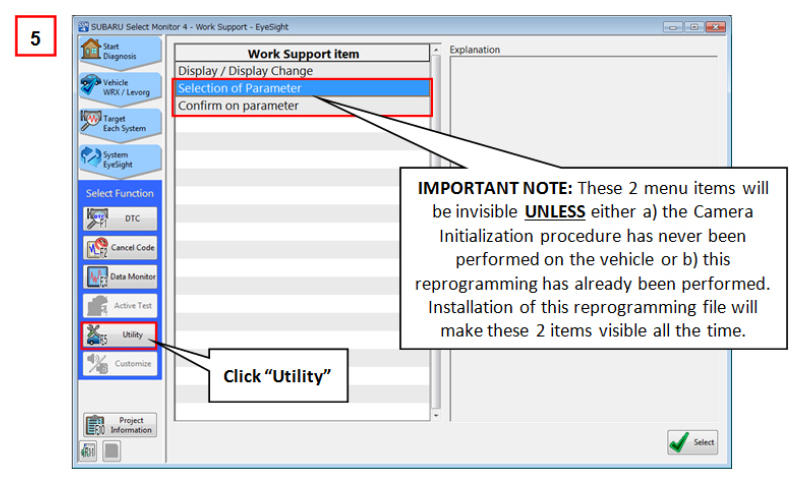

- After installation of the proper reprogramming file(s) is complete, go back to Step 1 , proceed through to Step 5 and confirm after clicking on "Utility", both the Selection of Parameter and Confirm on Parameter appear under Work Support.

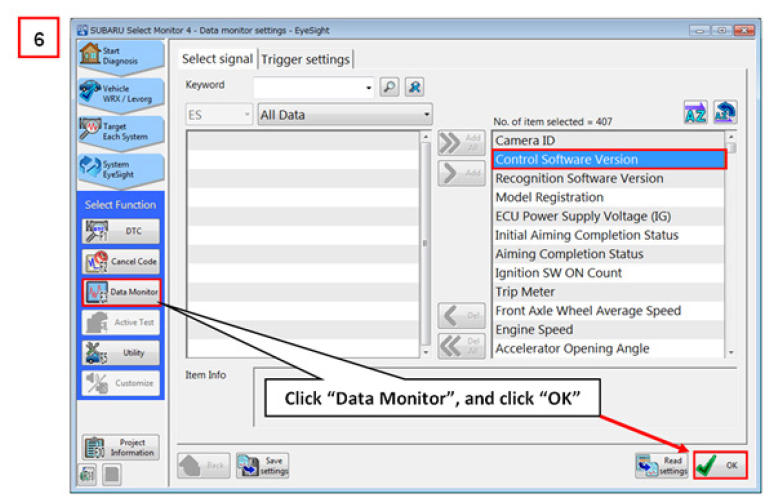

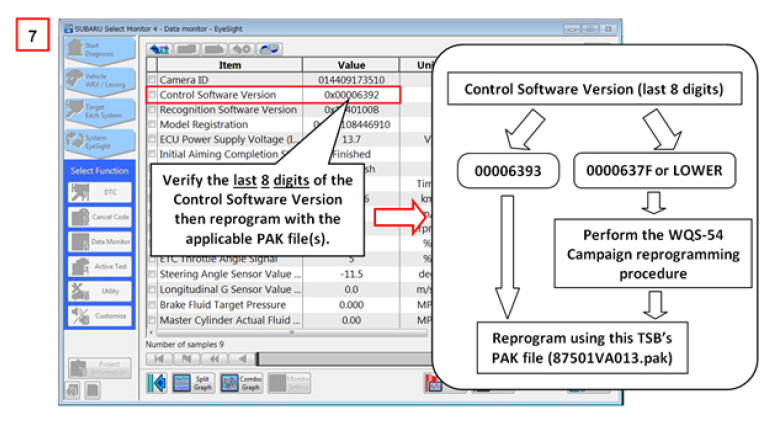

- After confirmation, proceed to Step 6 and Step 7 to verify the Control Software Version has been updated successfully (000063B1) to complete the procedure.
WARRANTY / CLAIM INFORMATION
For vehicles within the Basic New Car Limited Warranty period or covered by a Subaru Added Security Gold plan, this repair may be submitted using the following claim information:
| LABOR DESCRIPTION | LABOR OPERATION # | FAIL CODE | LABOR TIME |
|---|---|---|---|
| EYESIGHT SYSTEM REPROGRAMMING | A067-728 | ZQW-48 | 0.4 |
IMPORTANT REMINDERS:
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs.
