Cruise Control Main Switch: Inspection

INSPECT CRUISE CONTROL MAIN SWITCH ASSEMBLY
1. Measure the resistance according to the value(s) in the table below.

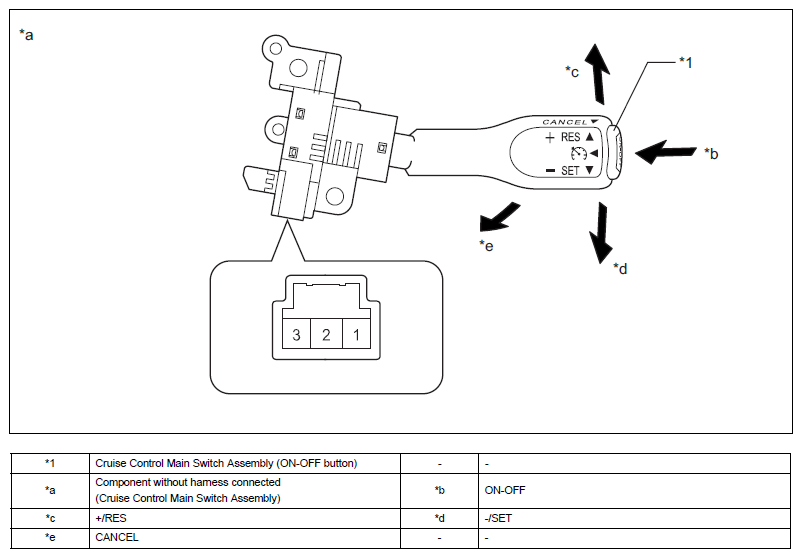

Fig 1: Inspecting Cruise Control Main Switch Assembly with Connector End View

Courtesy of SUBARU OF AMERICA, INC.

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
1 - 3	All switch released	1 M Ωor higher
	Cruise control Main switch Assembly (ON-OFF button) pushed	Below 1 Ω
	+/RES switch ON	235 to 245 Ω
	-/SET switch ON	617 to 643 Ω
	CANCEL switch ON	1509 to 1571 Ω
