System diagram

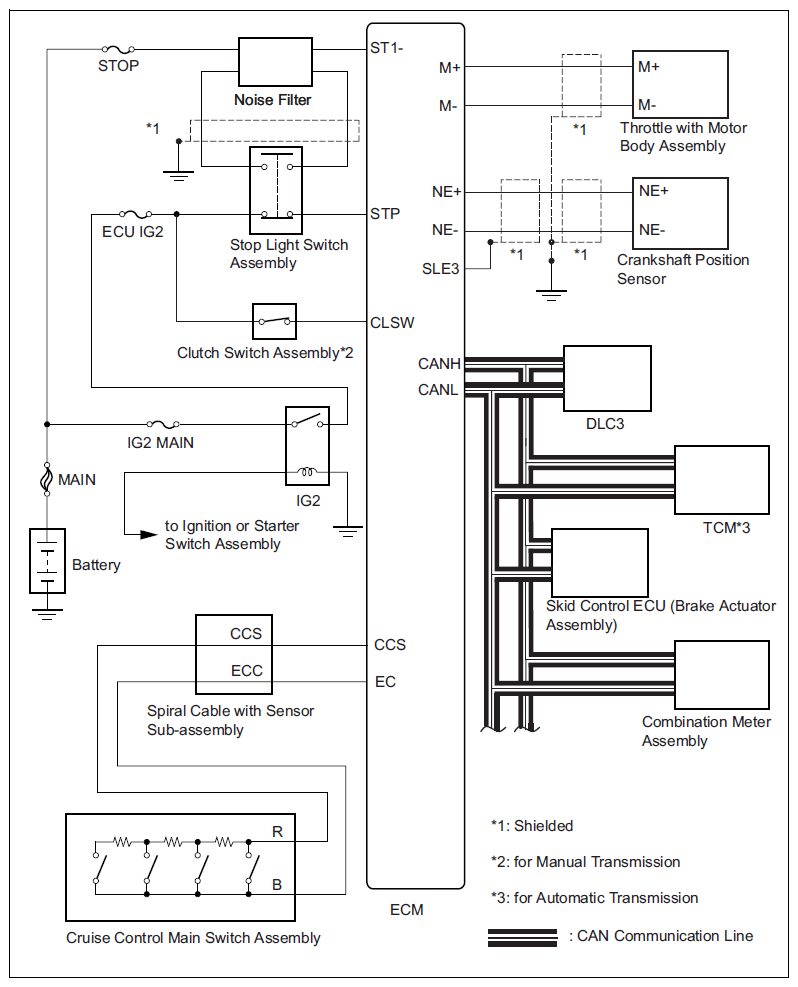

Fig 1: Cruise Control System Diagram
G11259303Courtesy of SUBARU OF AMERICA, INC.
COMMUNICATION CHART

Transmitter side receiver side Remarks Lines
TCM ECM Shift lever position and gear selection signal CAN
Skid control ECM ECM
  • Vehicle speed signal
  • ABS, TRC or VSC operation signal
 CAN
ECM Combination meter ASSY (Cruise control indicator) (Cruise control SET indicator) Cruise control indicator and cruise control SET indicator operation signal CAN
