Circuit figure: Overview

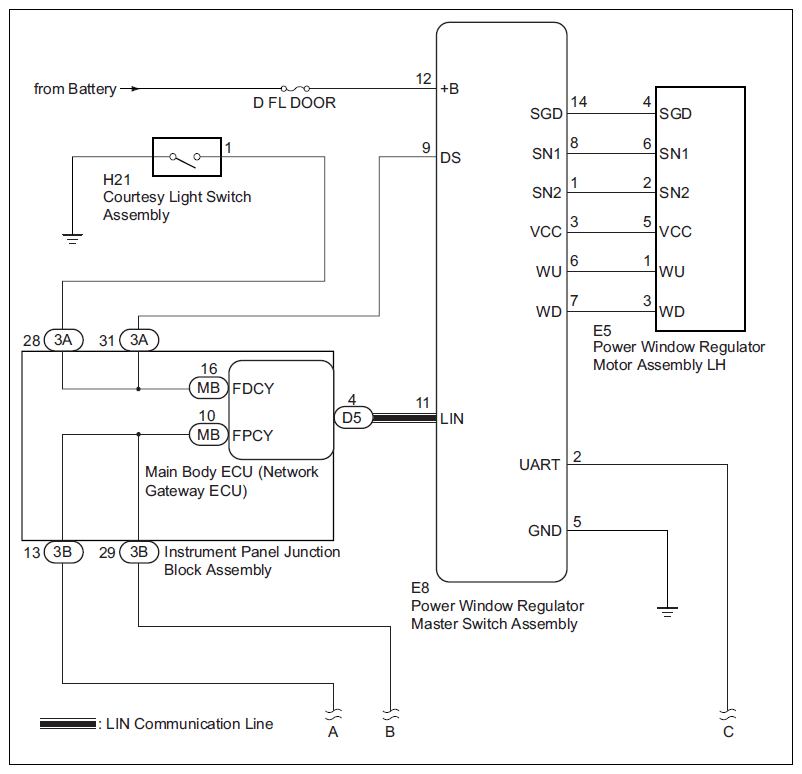

Fig 1: Power Window System - Circuit Diagram (1 Of 2)
G11262582Courtesy of SUBARU OF AMERICA, INC.

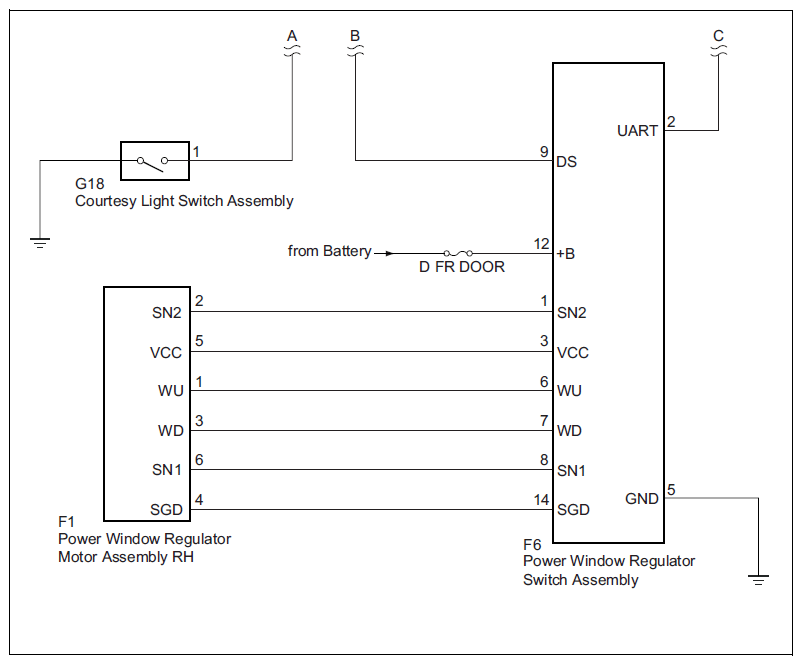

Fig 2: Power Window System - Circuit Diagram (2 Of 2)
G11262583Courtesy of SUBARU OF AMERICA, INC.
