Power control system
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

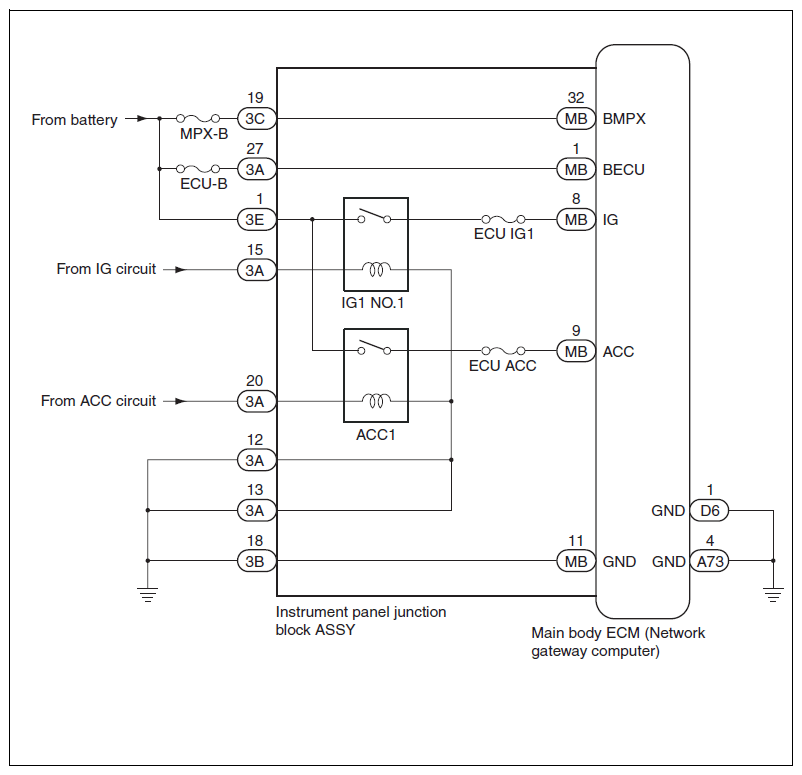

Fig 1: Instrument Panel Junction Block ASSY - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
