Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery. Ref. to BATTERY .
  2. Remove the trim panel - rear apron LH. Ref. to REMOVAL , Rear Quarter Trim.
  3. Remove the keyless entry control module.
    1. Disconnect the connector.
    2. Remove the bolt and then remove the keyless entry control module.

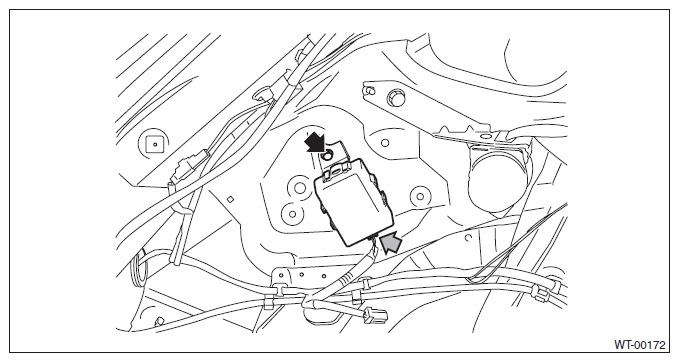

Fig 1: Locating Keyless Entry Control Module Connector And Bolt
G11572147Courtesy of SUBARU OF AMERICA, INC.
