Security Control Module: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to CAUTION , General Description.
  • Do not allow harness and connectors to interfere or get tangled up with other parts.
  • If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC(VDC) Centering Mode" of the VDC. Ref. to ADJUSTMENT , VDC Control Module and

Hydraulic Control Unit (VDCCM & H/U).

  1. Remove the steering wheel. Ref. to REMOVAL , Steering Wheel.
  2. Remove the instrument panel assembly. Ref. to REMOVAL , Instrument Panel Assembly.
  3. Remove the heater and cooling unit assembly. Ref. to REMOVAL , Heater and Cooling Unit.
  4. Remove the security control module.
    1. Disconnect the connector.
    2. Remove the nuts, and remove the security control module.

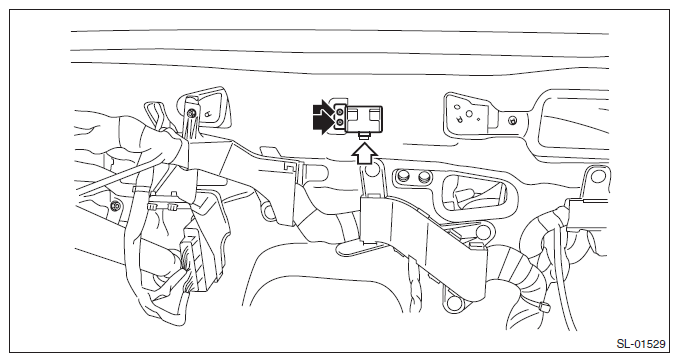

Fig 1: Locating Security Control Module Connector And Nuts
G11572146Courtesy of SUBARU OF AMERICA, INC.
