VDC Control Module & Hydraulic Control Unit (VDCCM & H/U)

• Models without EyeSight

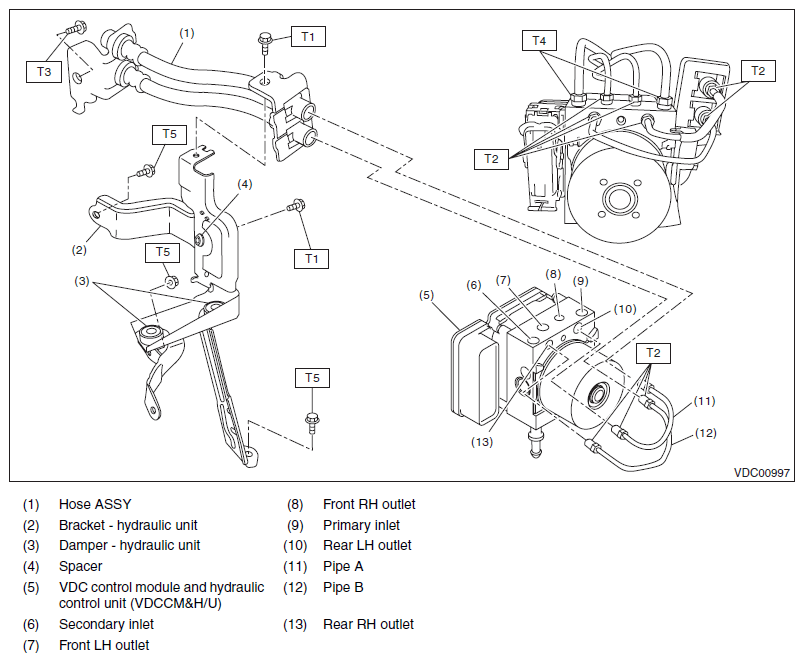

  Fig 1: VDC Control Module & Hydraulic Control Unit (Models Without Eyesight)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 7.5 (0.8, 5.5)

  T2: 15 (1.5, 11.1)

  T3: 19 (1.9, 14.0)

  T4: 33 (3.4, 24.3)

  T5: Ref. to  REPLACEMENT  , VDC Control Module and Hydraulic Control Unit (VDCCM & H/U).

• Models with EyeSight

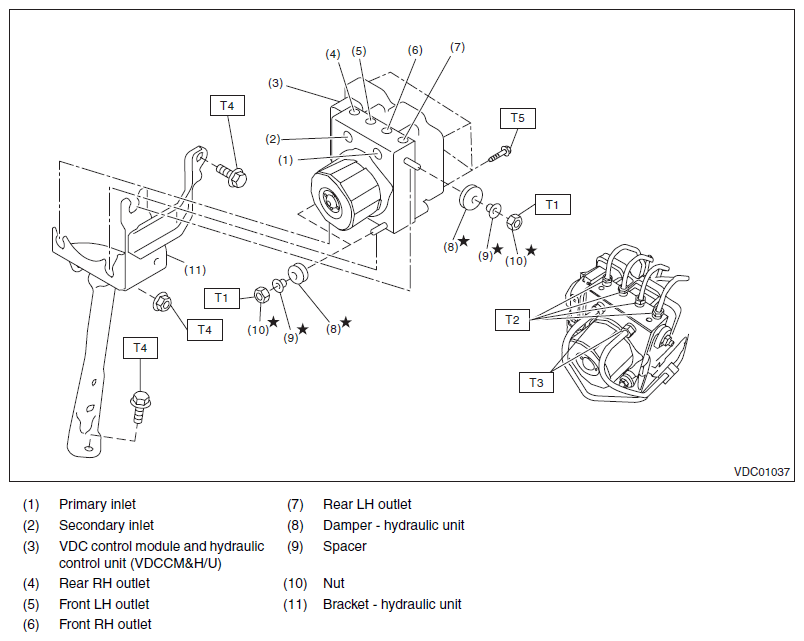

Fig 2: VDC Control Module And Hydraulic Control Unit (Models With Eyesight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

T4: 19 (1.9, 14.0)

T5: 33 (3.4, 24.3)
