Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery. Ref. to BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the instrument panel lower cover. Ref. to REMOVAL , Instrument Panel Lower Cover.
  3. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

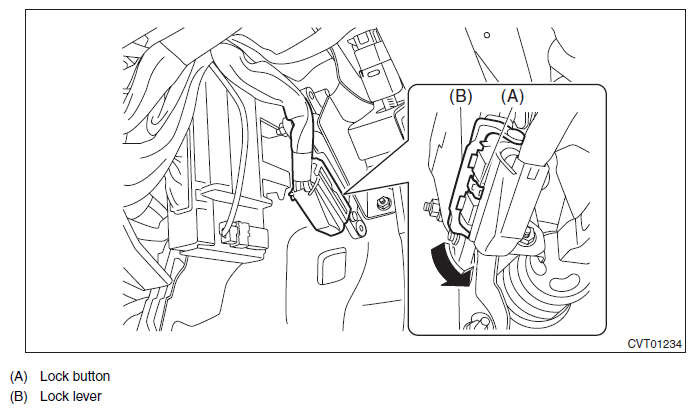

    Fig 1: Moving Lock Lever
    G11568392Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the TCM.

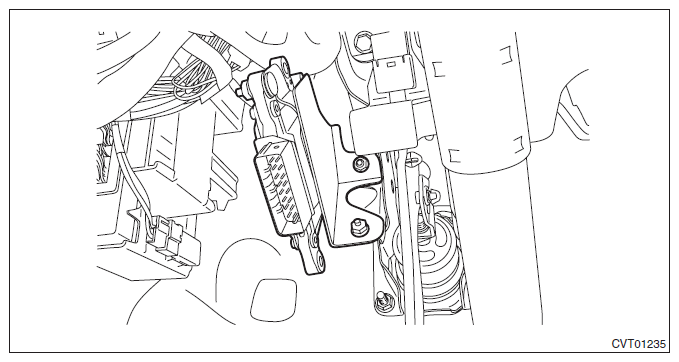

    Fig 2: Transmission Control Module
    G11568393Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the TCM from the bracket.
Fig 3: Transmission Control Module Bracket
G10218663Courtesy of SUBARU OF AMERICA, INC.
