Transfer Case And Extension

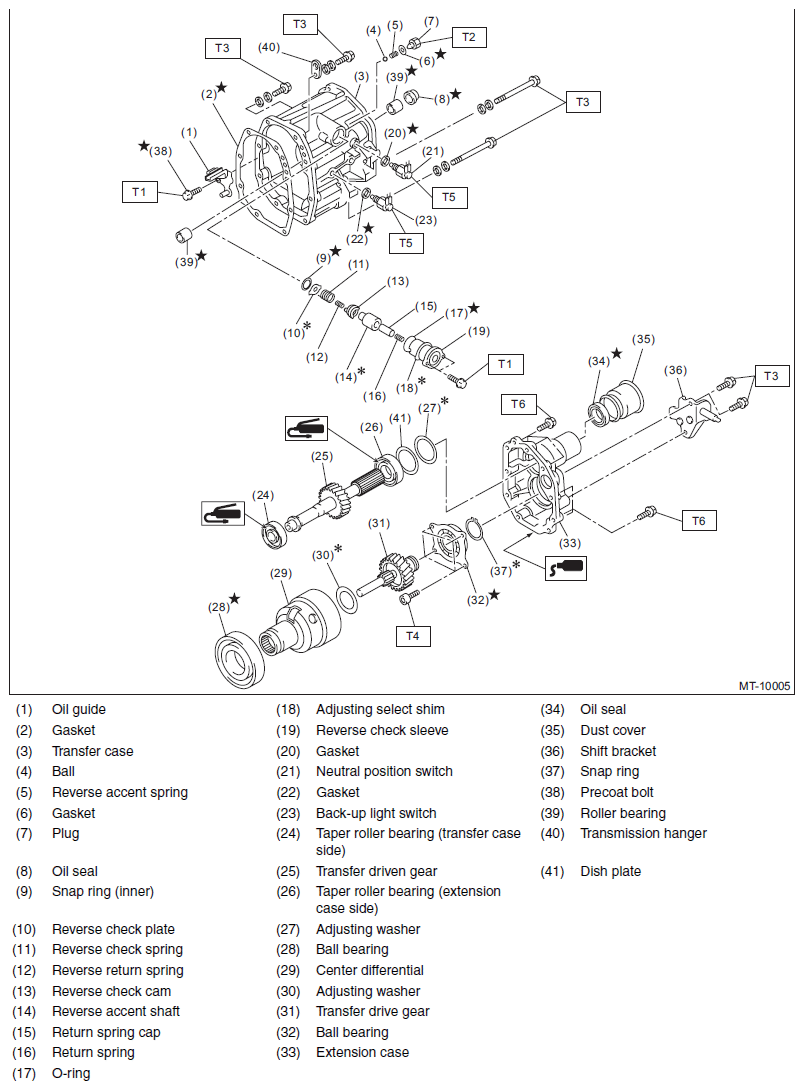

Fig 1: Exploded View Of Transfer Case And Extension

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 9.75 (1.0, 7.2)

T3: 24.5 (2.5, 18.1)

T4: 26 (2.7, 19.2)

T5: 32.3 (3.3, 23.8)

T6: 40 (4.1, 29.5)
