VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Inspection: Notes

Check the identification (a) of the VDC control module & hydraulic control unit (VDCCM&H/U).
NOTE: For the identification, refer to "SPECIFICATION" in "General Description". Ref. to VEHICLE DYNAMICS CONTROL (VDC)>General Description>SPECIFICATION .
- Models without EyeSight

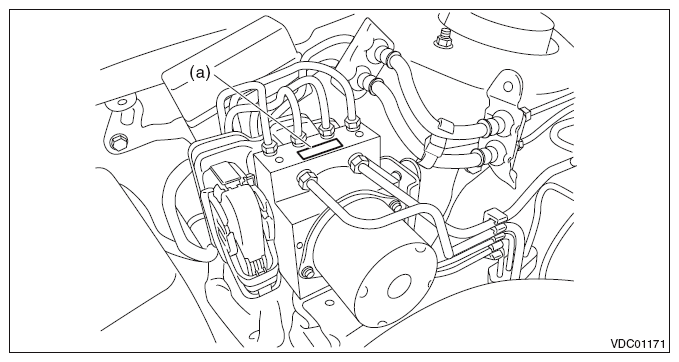

  Fig 1: Checking Identification Of VDC Control Module (Models Without Eyesight)
  Courtesy of SUBARU OF AMERICA, INC.
- Models with EyeSight

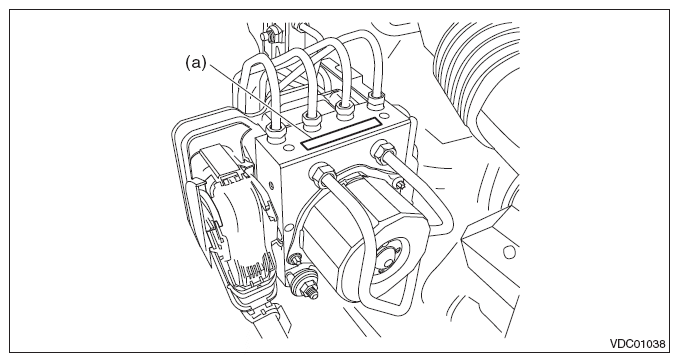

Fig 2: Checking Identification Of VDC Control Module (Models With Eyesight)
Courtesy of SUBARU OF AMERICA, INC.
Check the condition of connection and settlement of connector, and correct or replace if defective.
