Engine Control System (Diagnostics - Introduction) (H4DOTC): Electrical Component Location: Location: Sensor

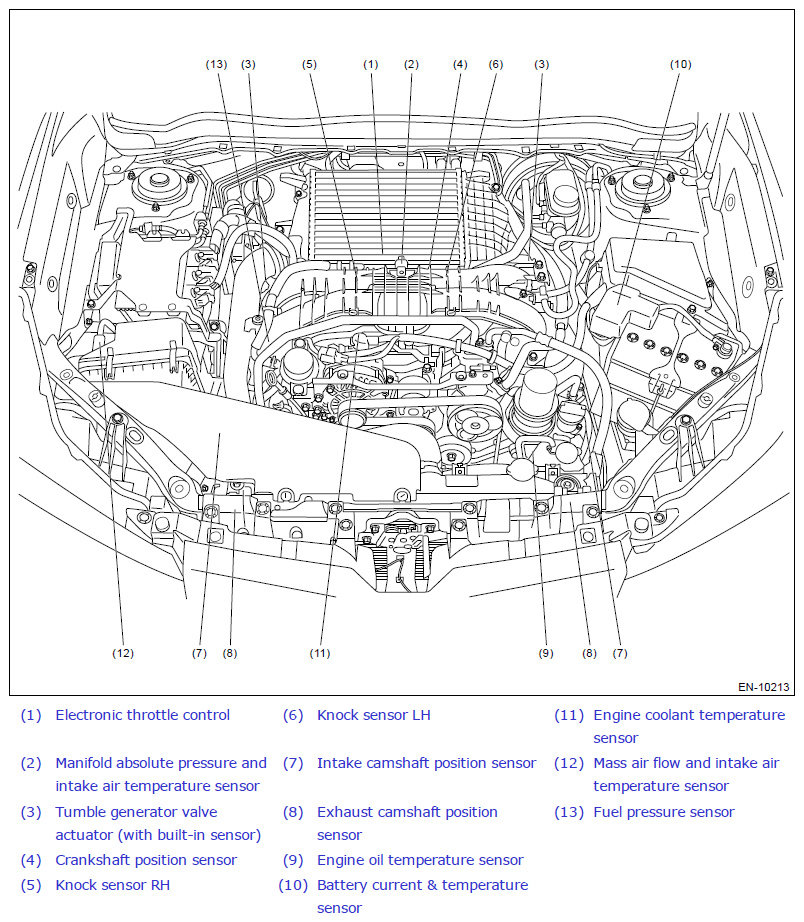

Fig 1: Identifying Engine Sensors Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

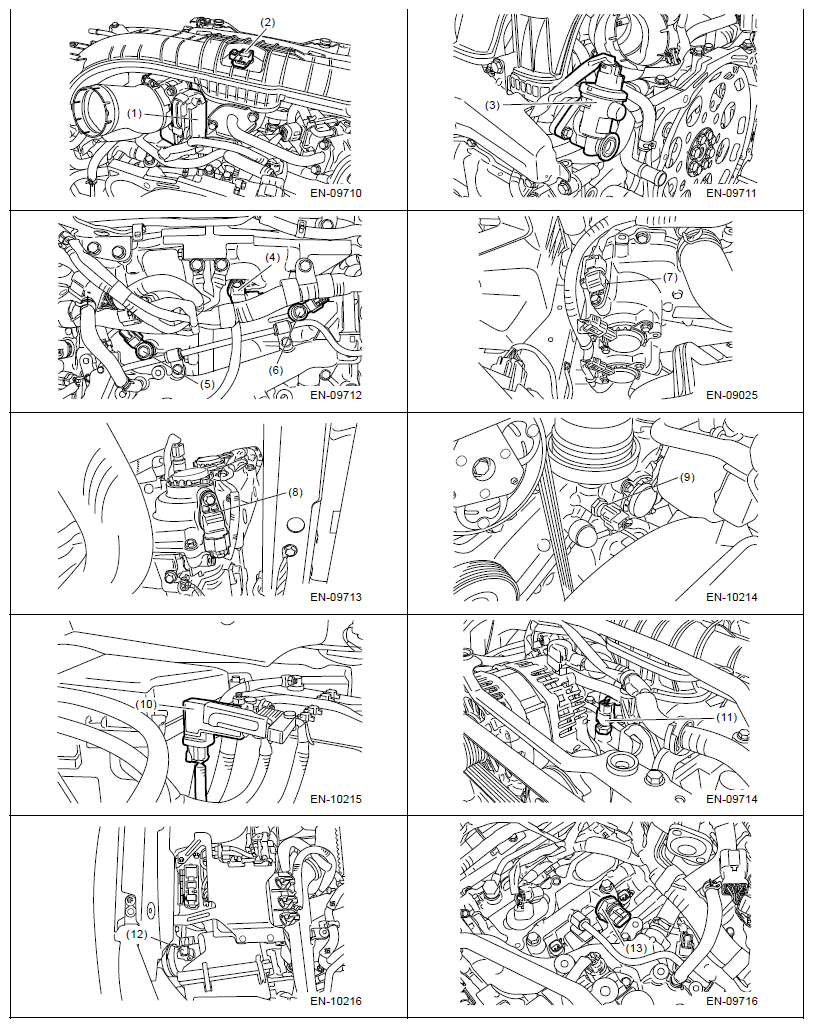

Fig 2: Identifying Engine Sensors Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

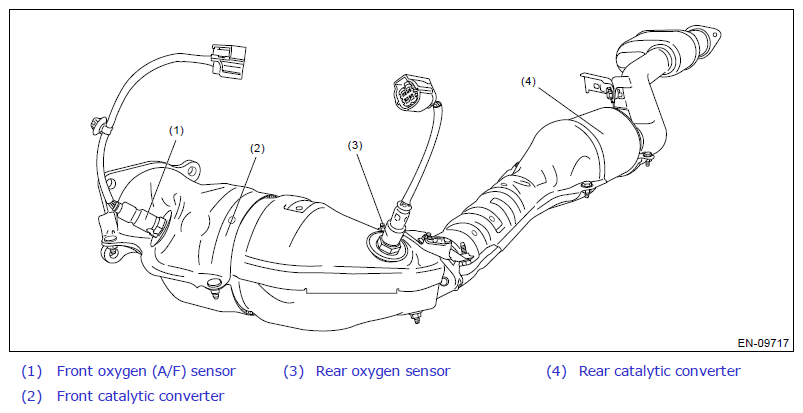

Fig 3: Identifying Engine Sensors Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

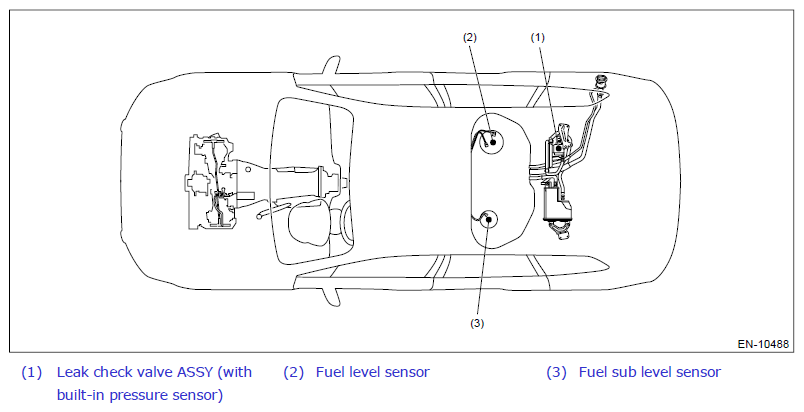

Fig 4: Identifying Engine Sensors Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

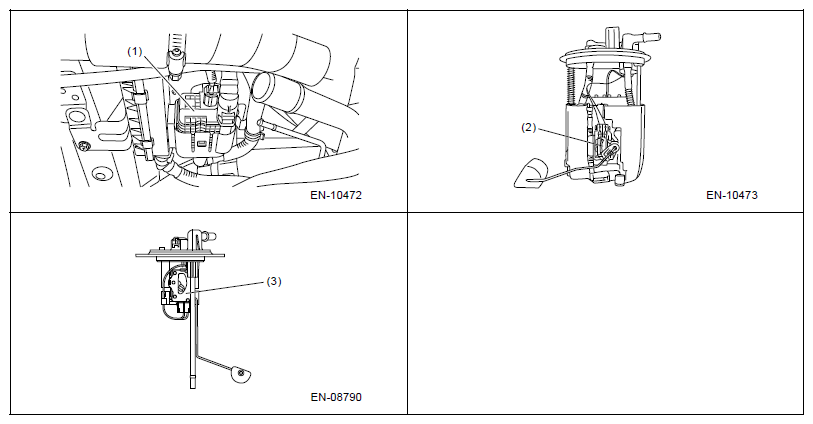

Fig 5: Identifying Engine Sensors Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
