Engine Control Module (ECM): Removal

Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
Remove the glove box. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .

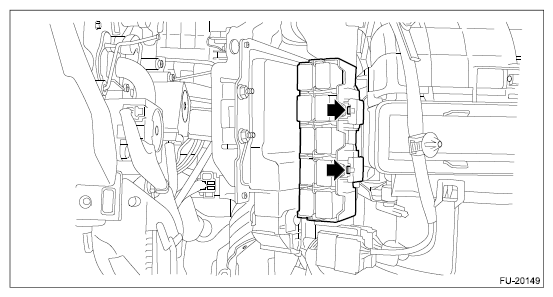

Push down the claws, and remove the relay block.

Fig 1: Locating Claws And Relay Block
Courtesy of SUBARU OF AMERICA, INC.
While pressing the section (A) shown in the figure, move the lock lever (B) in the direction of the arrow to disconnect the bulkhead harness connectors from the ECM in numerical order as shown in the figure.

Fig 2: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts, and remove the ECM.

Fig 3: Locating ECM Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the ECM from the bracket.

Fig 4: Locating ECM From Bracket With Nuts

Courtesy of SUBARU OF AMERICA, INC.
