Crankshaft Position Sensor: Removal

Disconnect the ground terminal from battery sensor. Ref. to NOTE>NOTE>BATTERY .
Remove the clip (A) from the air intake boot.
Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
Loosen the clamp (C) which secures the throttle body to the air intake boot.

Fig 1: Identifying Air Intake Boot Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.

Fig 2: Removing Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

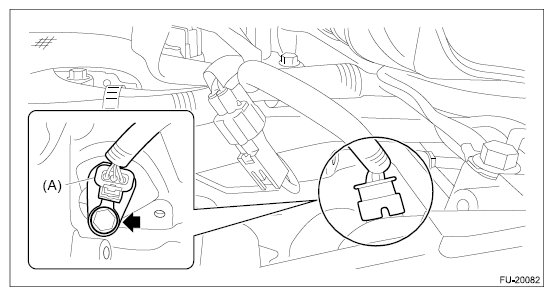

Disconnect the connector (A) from the crankshaft position sensor, and remove the crankshaft position sensor from the cylinder block.

Fig 3: Locating Connector From Crankshaft Position Sensor

Courtesy of SUBARU OF AMERICA, INC.
