Engine Wiring Harness: Installation

Set the engine wiring harness to the engine, and connect the connector.
NOTE:
- If the clip is damaged, replace it with a new part.
- Before replacing the clip, put an alignment mark (a) on both engine wiring harness and clip to remove the clip, and then align to the alignment mark (a) to attach a new clip to the engine wiring harness.
Fig 1: Identifying Alignment Mark On Both Engine Wiring Harness And Clip
Courtesy of SUBARU OF AMERICA, INC.
- Structural diagram 1

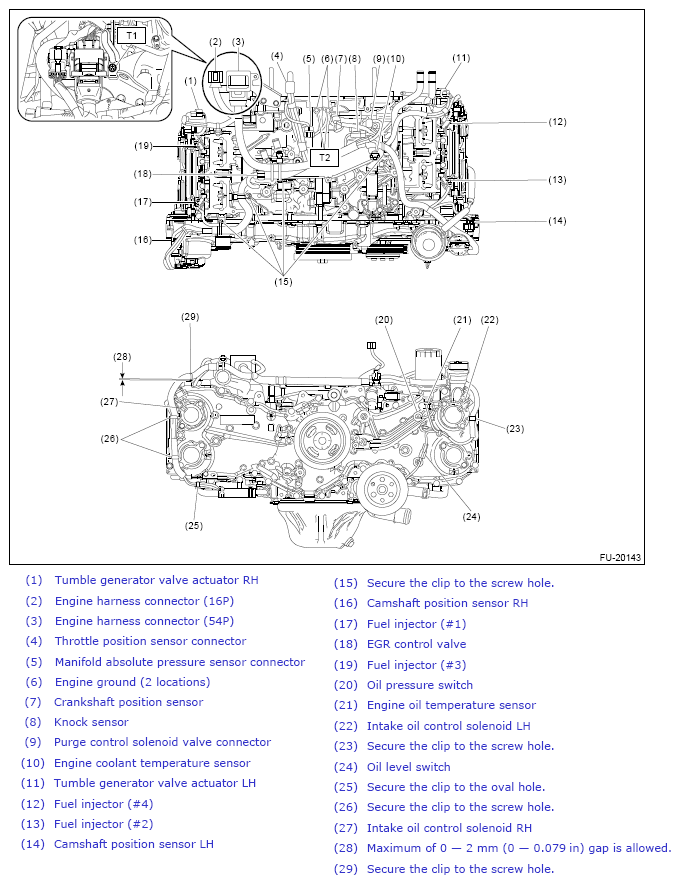

Fig 2: Engine Wiring Harness Structural Diagram 1
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 19 (1.9, 14.0)
- Structural diagram 2

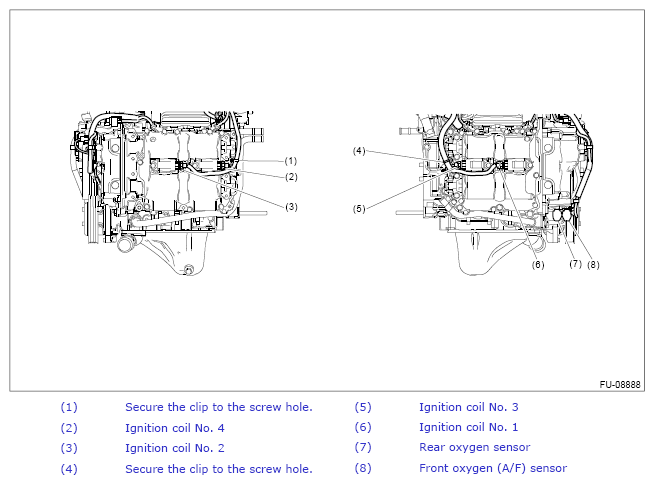

Fig 3: Engine Wiring Harness Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Intake Manifold Assembly>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to NOTE>NOTE>BATTERY .
