Fuel Injector LH

CAUTION:
  • Be careful not to spill fuel.
  • Catch the fuel from the pipes using a container or cloth.
  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  3. Remove the high-pressure fuel delivery pipes. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>High Pressure Fuel Delivery Pipe>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE .
  4. Disconnect the connectors (A) from fuel injector.
    NOTE: Disconnect the fuel injector #2 connector of the variable capacity A/C model at the intermediate harness side, and remove the tape (a).
    Fig 1: Identifying Fuel Injector Connector (LH)
    G11252813Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the bolts securing the fuel injector pipe LH, and remove the fuel injector and the fuel injector pipe LH as an assembly.

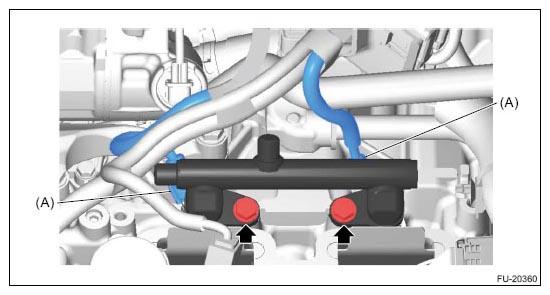

    Fig 2: Locating Fuel Injector Pipe Bolts (LH)
    G11252814Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the fuel injectors from the fuel injector pipe LH.
Fig 3: Removing Fuel Pipe Injectors (LH)
G11252815Courtesy of SUBARU OF AMERICA, INC.
