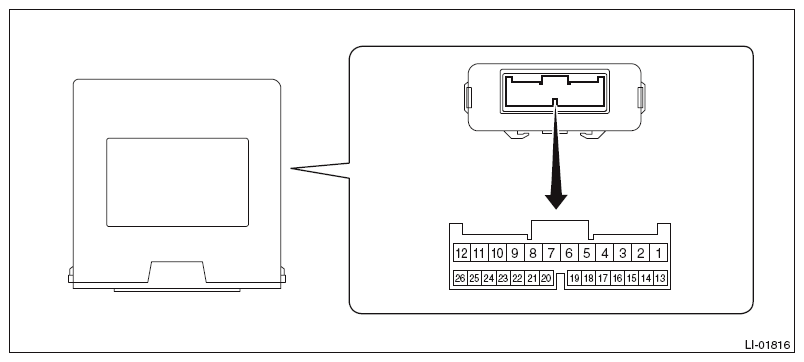

| 1 ←→ Chassis ground |
Battery power supply (right) |
Always |
8 - 16 V |
| 2 ←→ Chassis ground |
- |
- |
- |
| 3 ←→ Chassis ground |
Fog light output (right) |
Fog light switch ON |
8 - 16 V |
| 4 ←→ Chassis ground |
- |
- |
- |
| 5 ←→ Chassis ground |
SRF OFF switch |
SRF OFF switch OFF → ON |
5 V or more → 1.5 V or less |
| 6 ←→ Chassis ground |
- |
- |
- |
| 7 ←→ Chassis ground |
- |
- |
- |
| 8 ←→ Chassis ground |
Rear vehicle height sensor signal |
IG ON (with no passenger, no load and vehicle stopped) |
Approx. 2.5 V (changes according to vehicle condition) |
| 9 ←→ Chassis ground |
- |
- |
- |
| 10 ←→ Chassis ground |
Fog light output (left) |
Fog light switch ON |
8 - 16 V |
| 11 ←→ Chassis ground |
- |
- |
- |
| 12 ←→ Chassis ground |
Battery power supply (left) |
Always |
8 - 16 V |
| 13 ←→ Chassis ground |
GND |
Always |
Less than 1 Ω |
| 14 ←→ Chassis ground |
Ignition power supply |
Ignition switch ON |
8 - 16 V |
| 15 ←→ Chassis ground |
Leveling actuator power supply |
Ignition switch ON |
8 - 16 V |
| 16 ←→ Chassis ground |
Leveling actuator GND |
Always |
Less than 1 Ω |
| 17 ←→ Chassis ground |
- |
- |
- |
| 18 ←→ Chassis ground |
- |
- |
- |
| 19 ←→ Chassis ground |
- |
- |
- |
| 20 ←→ Chassis ground |
- |
- |
- |
| 21 ←→ Chassis ground |
Leveling actuator signal |
Headlight off → on |
Less than 1 V → 1.0 - 14.4 V (for 17 seconds) |
| Headlight on, no vehicle height change → change and hold vehicle height for 3 seconds or more |
| 22 ←→ Chassis ground |
- |
- |
- |
| 23 ←→ Chassis ground |
Rear vehicle height sensor power supply |
Ignition switch ON |
4.75 - 5.25 V |
| 24 ←→ Chassis ground |
Rear vehicle height sensor GND |
Always |
Less than 1 Ω |
| 25 ←→ Chassis ground |
CAN-H (CAN communication line) |
Cannot be measured |
- |
| 26 ←→ Chassis ground |
CAN-L (CAN communication line) |
Cannot be measured |
- |
