Fixed Glass (Outback Model)

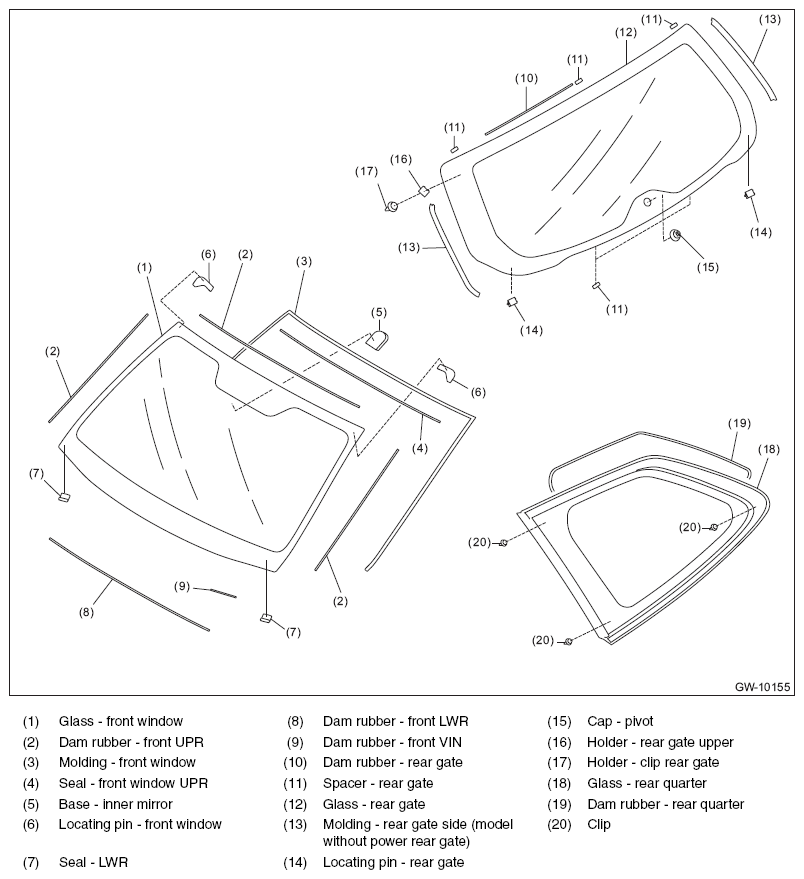

Fig 1: Fixed Glass Replacement Component Location (Outback Model)

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Base - inner mirror cannot be removed from the glass - front window.
