Radiator Fan Control Module (Sub)

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground terminal from battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Remove the air intake duct. Ref. to REMOVAL , Air Intake Duct.
Disconnect the radiator fan harness connector (A) and radiator sub fan motor connector (B) from the radiator fan control module (sub).
Remove the bolts securing the radiator fan control module (sub), and remove the radiator fan control module (sub).

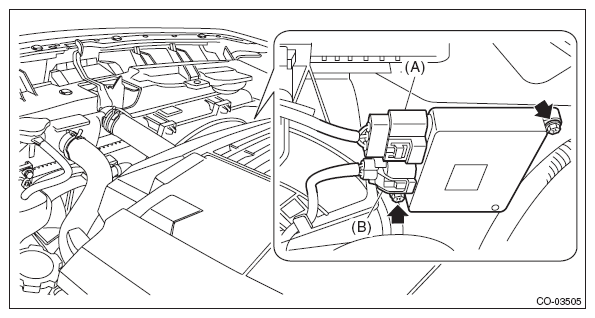

Fig 1: Identifying Radiator Fan Control Module Bolts (Sub)

Courtesy of SUBARU OF AMERICA, INC.
