Section 12 (Engine Cooling System (H6DO)): Radiator: Installation

WARNING: This page is about a different variant/trim than selected.

Install the radiator lower cushion to the vehicle body.
Install the radiator to vehicle.
NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions.
Remove the ropes or other means used to secure the condenser to the vehicle.

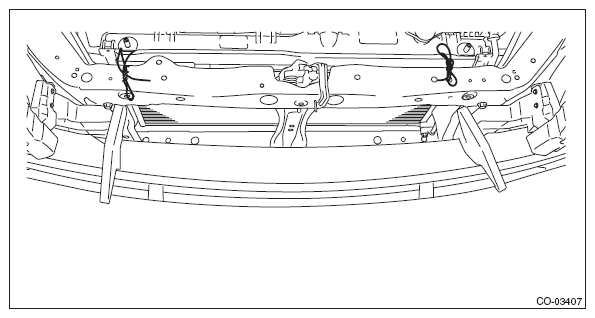

Fig 1: Securing Condenser To Vehicle Using Ropes
Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the bolts securing the condenser upper bracket to the radiator.

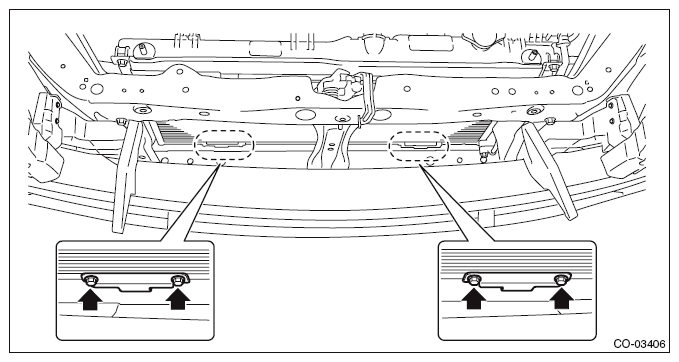

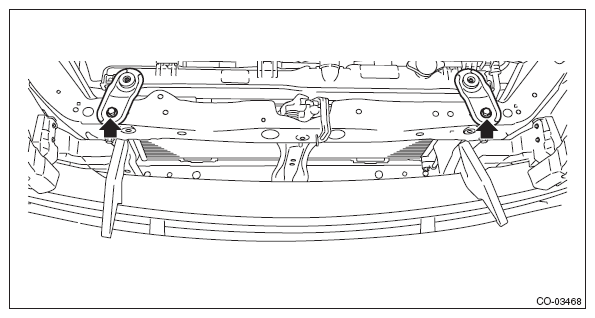

Fig 2: Identifying Condenser Upper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Position the condenser lower bracket, and install the bolts securing the condenser lower bracket to the condenser.
Tightening torque:

3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

Fig 3: Identifying Condenser Lower Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, tighten the bolts securing the condenser lower bracket to the radiator.
ST 73099SG000 SPECIAL TOOL CONDENSER

Tightening torque:

Calculation formula

T = L/(100 mm (3.94 in)+L) x 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

T: Tightening torque

L: Effective length of torque wrench

NOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench.

Fig 4: Checking Length Of Torque Wrench
Courtesy of SUBARU OF AMERICA, INC.

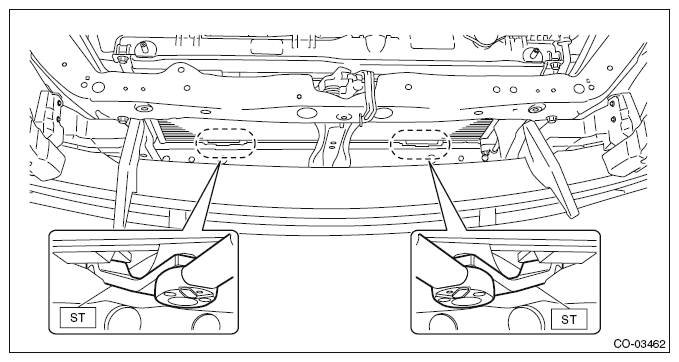

Fig 5: Tightening Condenser Lower Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts securing the condenser upper bracket to the radiator.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 6: Identifying Condenser Upper Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator upper bracket LH and the radiator upper bracket RH.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Fig 7: Identifying Radiator Upper Bracket Bolts LH And RH
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hose LH and radiator inlet hose RH.

Fig 8: Identifying Radiator Inlet Hose LH And RH
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank. Ref. to INSTALLATION , Reservoir Tank.
Lift up the vehicle.
Connect the connector (A) and connector (B) to the radiator fan harness.

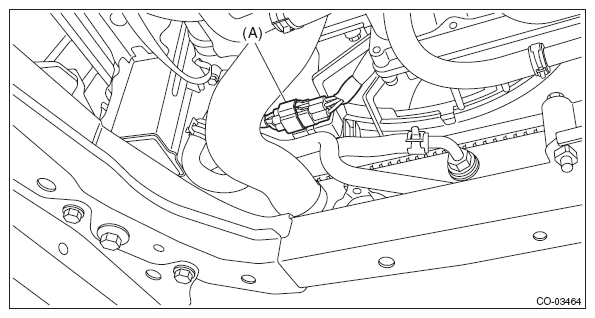

Fig 9: Identifying Radiator Fan Harness Connector (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

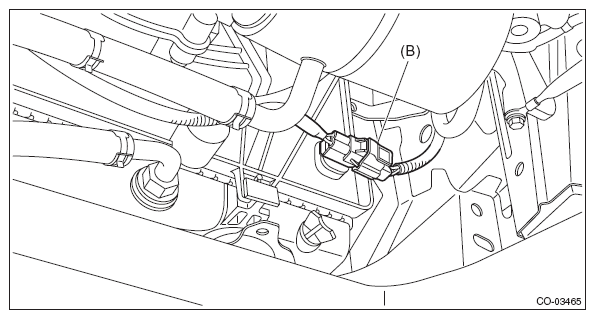

Fig 10: Identifying Radiator Fan Harness Connector (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Connect the CVTF radiator inlet hose and CVTF radiator outlet hose to the CVTF cooler pipe assembly.
NOTE: Use new CVTF radiator inlet hose and CVTF radiator outlet hose.

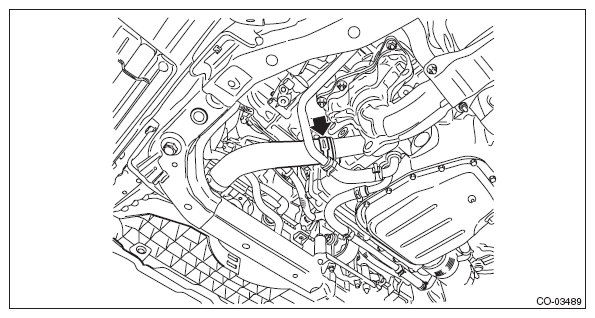

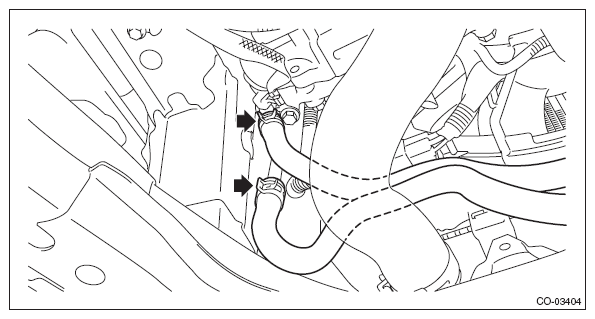

Fig 11: Identifying CVTF Pipe Clamps
Courtesy of SUBARU OF AMERICA, INC.
Install the CVTF radiator inlet hose and CVTF radiator outlet hose to the clips of the radiator fan shroud.
Connect the radiator outlet hose to thermostat cover.

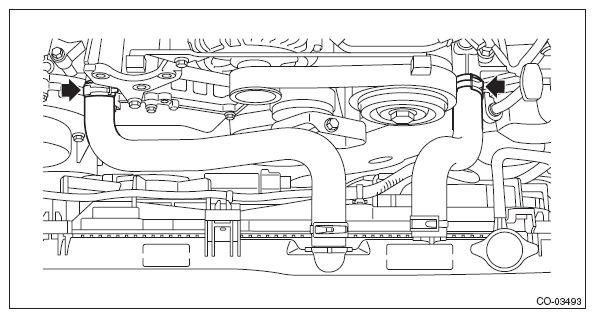

Fig 12: Identifying Radiator Outlet Hose Clamps
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. Ref. to INSTALLATION , Front Under Cover.
Lower the vehicle.
Attach the grille bracket.

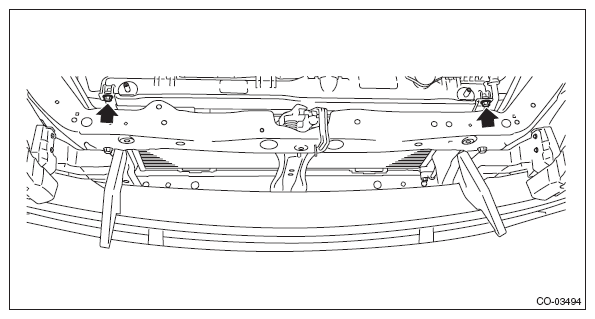

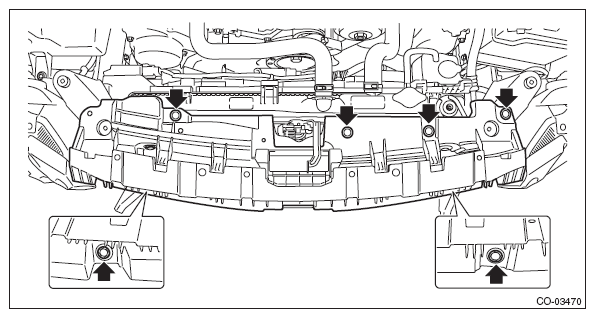

Fig 13: Identifying Grille Bracket Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the front bumper. Ref. to INSTALLATION , Front Bumper.
Install the air intake duct. Ref. to INSTALLATION , Air Intake Duct.
Connect the ground terminal to battery sensor. Ref. to BATTERY
NOTE: Repair Contents.
Fill engine coolant. Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Check the CVTF level and replenish it if necessary. Ref. to INSPECTION , CVTF.
Install the collector cover.
