Check Switch Unit

Measure the resistance between harness connector terminals of the X mode switch.

	Terminal No.	Standard
OFF (when measured without operating the switch)	No. 1 - No. 4	1 MΩ or more
ON (when measured with the switch held down)	No. 1 - No. 4	Less than 1 Ω

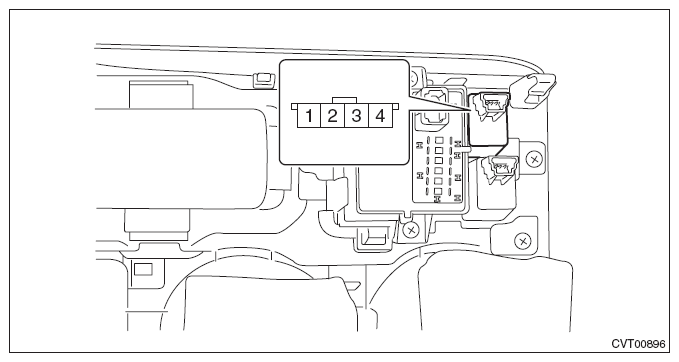

Fig 1: X Mode Switch Harness Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.
