Door Lock Assembly

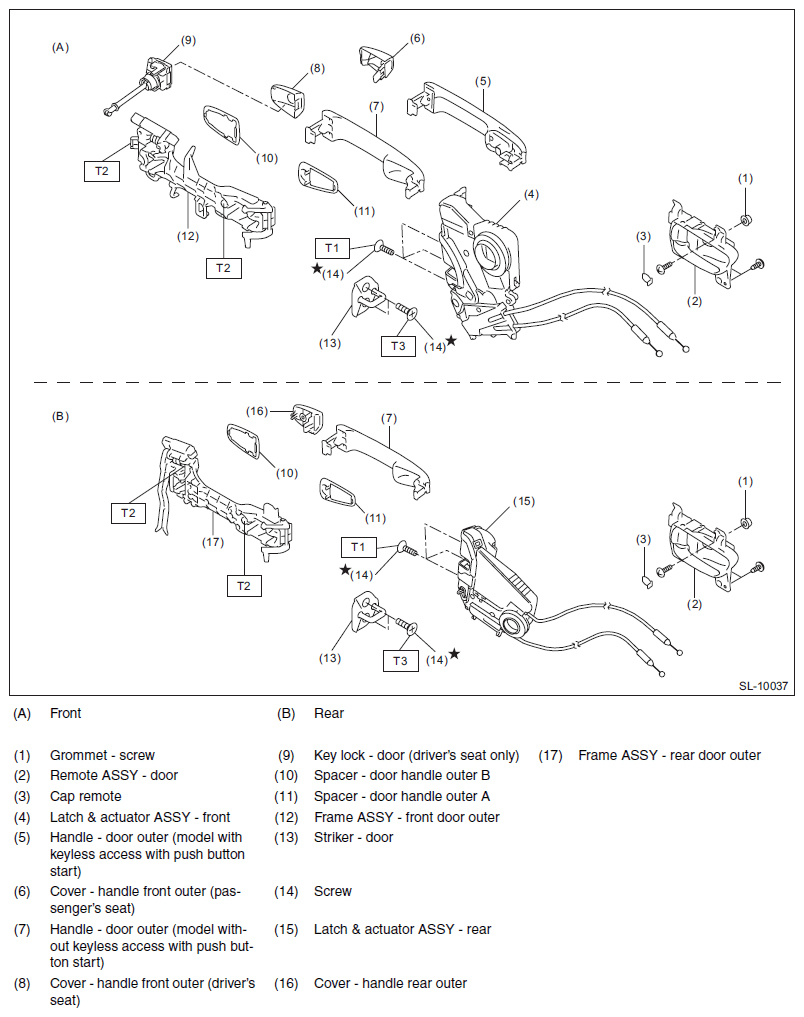

Fig 1: Door Lock Assembly Component With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
