Ignition Key Lock: Disassembly

Remove the immobilizer antenna assembly or the ignition switch illumination.
1. Disconnect the connector.
2. Release two claws using a flat tip screwdriver or similar tool wrapped with a protection tape, and remove the immobilizer antenna assembly or the ignition switch illumination.
CAUTION: Do not apply excessive force to disengage the lock of immobilizer antenna assembly or ignition switch illumination. Otherwise they may be broken because those parts are the products made of a plastic .

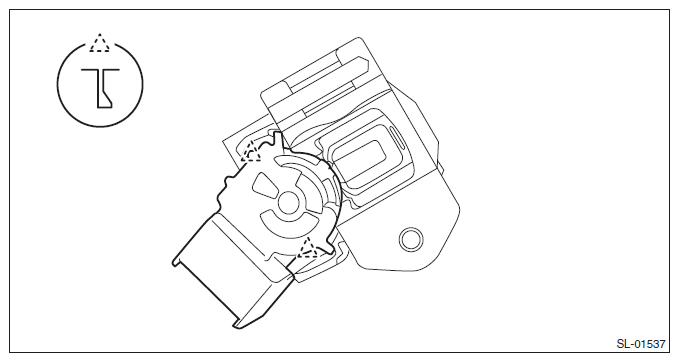

Fig 1: Removing Immobilizer Antenna Assembly
Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and pull the key warning switch downwards to remove.

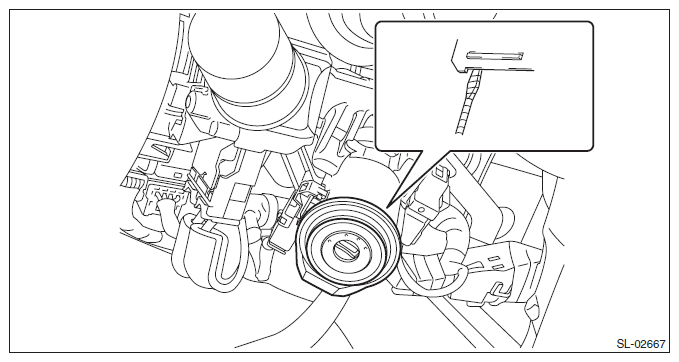

Fig 2: Pulling Key Warning Switch Downwards
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws and remove the key lock solenoid.

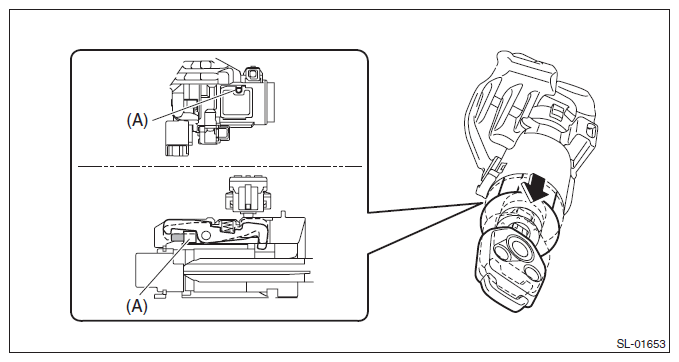

Fig 3: Locating Key Lock Solenoid Screws
Courtesy of SUBARU OF AMERICA, INC.
Replace the key cylinder.
1. Insert the key into the key cylinder, and turn the key to the ACC position.
2. Insert a flat tip screwdriver from the steering lock frame hole (A), and pull the key cylinder until the key cylinder claws touch the steering lock frame stopper (B).

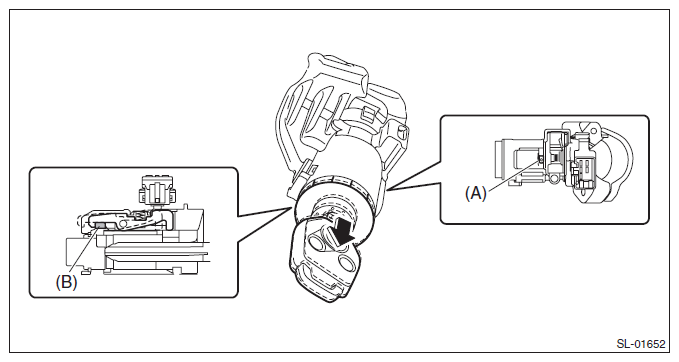

  Fig 4: Pulling Key Cylinder
  Courtesy of SUBARU OF AMERICA, INC.
3. Insert a flat tip screwdriver from the steering lock frame hole (A), and release the claws to pull out the key cylinder.
Fig 5: Pulling Key Cylinder Claws
Courtesy of SUBARU OF AMERICA, INC.
Release the claws and remove the ignition switch assembly.

Fig 6: Removing Ignition Switch Assembly Claws

Courtesy of SUBARU OF AMERICA, INC.
