Steering Lock

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. <Ref. to BATTERY , NOTE, Note.>
NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the cover assembly - column.
1. Release the clips, and remove the cover assembly - steering UPR.

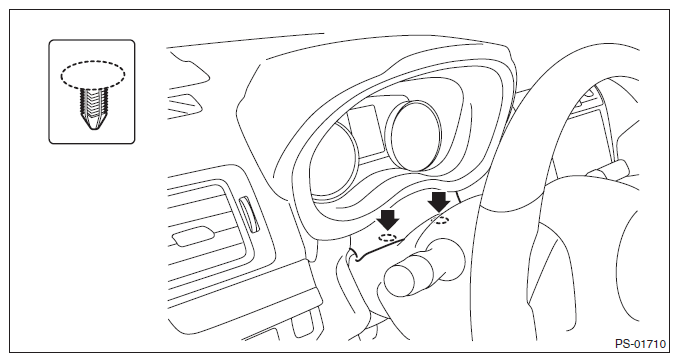

  Fig 1: Removing Steering UPR Cover Assembly Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the screws by turning the steering wheel to right and left.
3. Release the claw, and remove the cover assembly - column UPR and the cover assembly - column LWR.

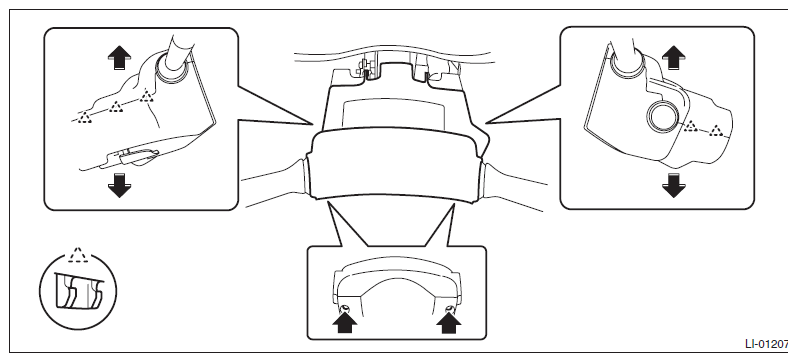

Fig 2: Locating Steering Wheel Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the immobilizer antenna assembly or the ignition switch illumination. <Ref. to REMOVAL , Immobilizer Antenna.>
Remove the key lock solenoid.
1. Disconnect the connector.
2. Remove the screws and remove the key lock solenoid.

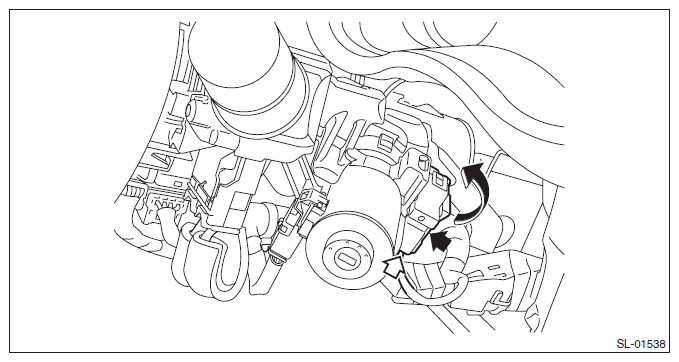

Fig 3: Removing Key Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
Replace the key cylinder.
1. Insert the key into the key cylinder, and turn the key to the ACC position.
2. Insert a flat tip screwdriver from the steering lock frame hole (A), and pull the key cylinder until the key cylinder claws touch the steering lock frame stopper (B).

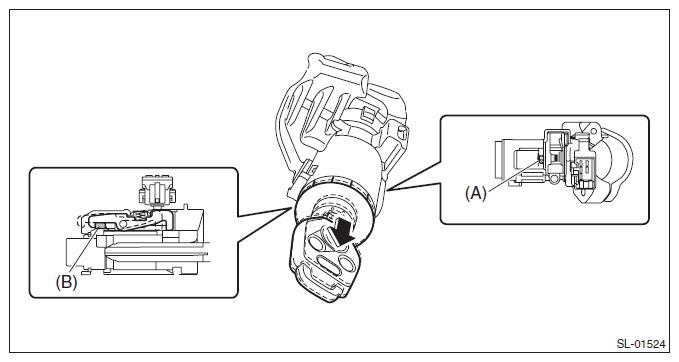

  Fig 4: Pulling Key Cylinder
  Courtesy of SUBARU OF AMERICA, INC.
3. Insert a flat tip screwdriver from the steering lock frame hole (A), and release the claws to pull out the key cylinder.

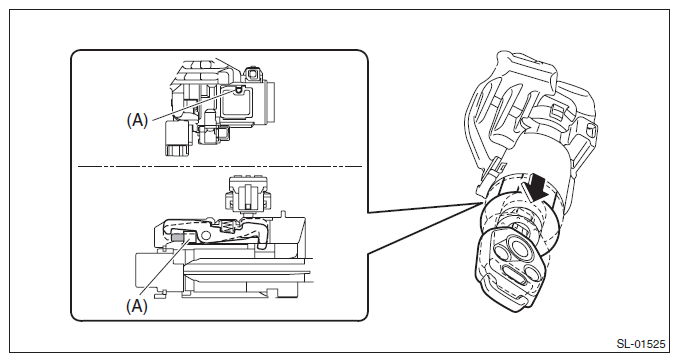

Fig 5: Pulling Key Cylinder Claws
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.
Connect the battery ground terminal. <Ref. to BATTERY , NOTE, Note.>
