Front Disc Rotor: Installation
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before installation, remove mud and foreign matter from the disc brake assembly front.
- Check the brake disc front. Ref. to BRAKE>FRONT DISC ROTOR>INSPECTION .
- Press back the piston disc brake with a disc brake piston tool.CAUTION:
When pressing back the piston disc brake, the clearance between pad disc brake and brake disc becomes large, which makes the brake pedal effort softer.
After the installation of front wheel, be sure to perform the adjustment of the clearance and the pedal effort by depressing the brake pedal several times.
NOTE:Perform this procedure only when required.
- Install the brake disc front.NOTE:

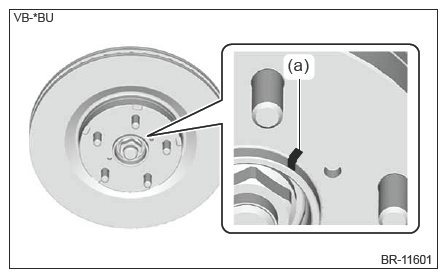

Install so that the markings (a) of the brake disc front and the front hub unit bearing are aligned with each other.
- Use new mounting bolts to install the disc brake assembly front.
Tightening torque:
135 N.m (13.8 kgf-m, 99.6 ft-lb)
- Install the brake hose bracket.
Tightening torque:
33 N.m (3.4 kgf-m, 24.3 ft-lb)
- Install the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>INSTALLATION .
