Electronically-Controlled Damper Model

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  3. Remove the electric damper harness ABS assembly front.
    CAUTION:
    • Be careful not to damage the sensor.
    • Do not apply excessive force to the sensor harness.

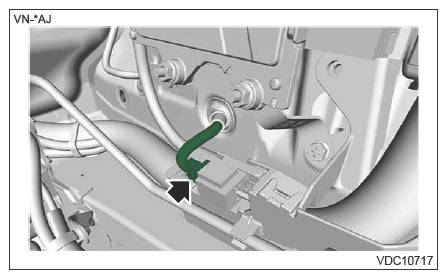

    1. Disconnect the connector of the electric damper harness ABS assembly front in the engine compartment.
      G14602123Courtesy of SUBARU OF AMERICA, INC.
    2. Disconnect connectors.

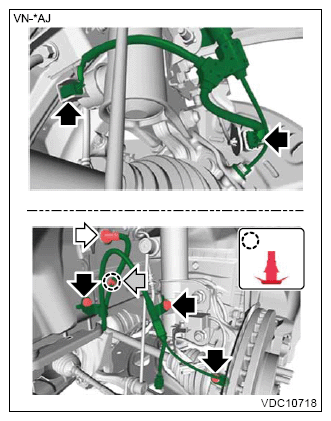

    3. Remove the bolts, the harness clip, and the grommet, and remove the electric damper harness ABS assembly front.
G14602124Courtesy of SUBARU OF AMERICA, INC.
