Turn Signal Light Bulb

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
  • Do not leave the light assembly rear combination without the bulb for a long time. Dust, moisture, etc. entering the light may affect its performance.

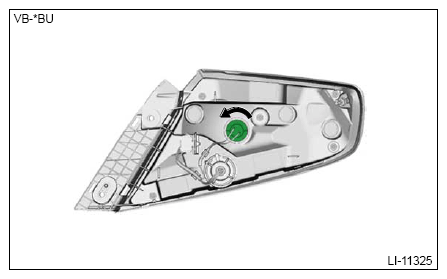

  1. Rotate in the direction of arrow shown in the figure to remove the bulb socket.
    G14612381Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the turn signal light bulb.
