Communication For Initializing Impossible
DETECTING CONDITION:
- Defective harness connector
- Defective power steering control module
TROUBLE SYMPTOM:
- Communication is impossible between the power steering control module and Subaru Select Monitor.
- After starting the engine, the STEERING warning light does not illuminate but steering effort is heavy.

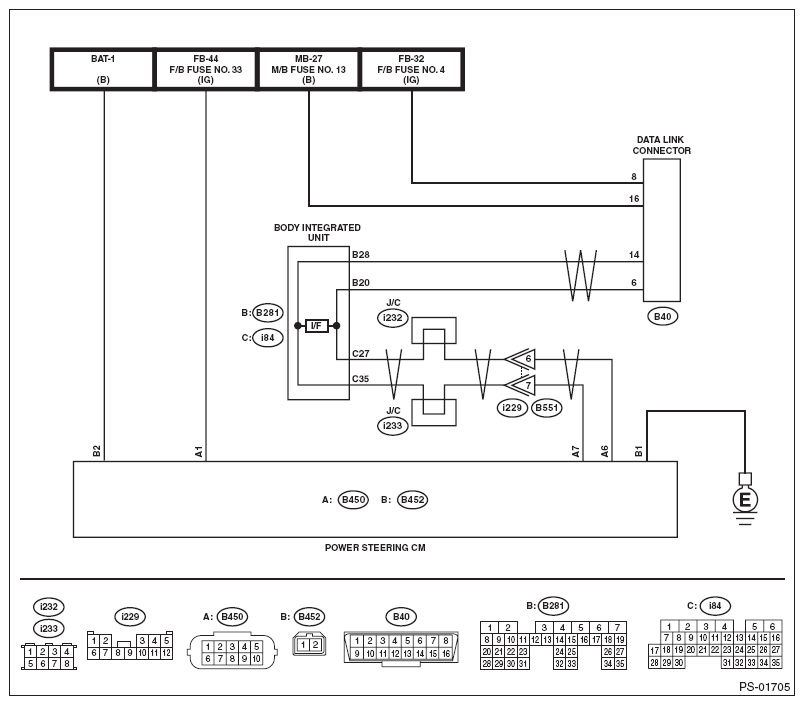

WIRING DIAGRAM:
Electric power steering system <Ref. to Electric Power Steering System .>
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK IGNITION SWITCH. | Is the ignition switch ON? | Go to step 2 . | Turn the ignition switch to ON, and select the power steering using the Subaru Select Monitor. |
2 CHECK BATTERY.
|
Is the voltage 11 V or more? | Go to step 3 . | Charge or replace the battery. |
| 3 CHECK BATTERY TERMINAL. | Is there poor contact at battery terminal? | Repair or tighten the battery terminal. | Go to step 4 . |
| 4 CHECK POWER STEERING CONTROL MODULE CONNECTOR INSTALLATION. Turn the ignition switch to OFF. |
Is the power steering control module connector inserted into the power steering control module until the clamp locks? | Go to step 5 . | Insert the power steering control module connector into the power steering control module. |
| 5 CHECK LAN SYSTEM. Perform the diagnosis for LAN system. <Ref. to Basic Diagnostic Procedure .> |
Is there any fault in LAN system? | Perform the diagnosis according to DTC for LAN system. <Ref. to List of Diagnostic Trouble Code (DTC) .> | Go to step 6 . |
6 CHECK SUBARU SELECT MONITOR COMMUNICATION.
|
Is «Select Function» displayed? | Check DTC of electric power steering system. <Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) .> | Go to step 7 . |
| 7 CHECK SUBARU SELECT MONITOR COMMUNICATION. Connect the Subaru Select Monitor to another vehicle to check whether the communication for initializing can be executed normally. |
Does the Subaru Select Monitor communicate normally? | Go to step 8 . | Repair or replace the Subaru Select Monitor. |
8 CHECK POWER SUPPLY CIRCUIT.
|
Is the voltage 10 - 15 V? | Go to step 9 . | Repair the open circuit in the harness between the power steering control module and the battery. |
9 CHECK HARNESS CONNECTOR BETWEEN POWER STEERING CONTROL MODULE AND CHASSIS GROUND.
|
Is the resistance less than 10 Ω? | Go to step 10 . | Repair the open circuit of the power steering control module ground circuit and the poor contact of connector. |
| 10 CHECK POOR CONTACT OF CONNECTOR. | Is there poor contact of power steering control module power supply, ground circuit and data link connector? | Repair the connector. | Replace the power steering control module. <Ref. to Power Steering Control Module .> |
