System Block Diagram

Main signals used between stereo camera and relevant CM

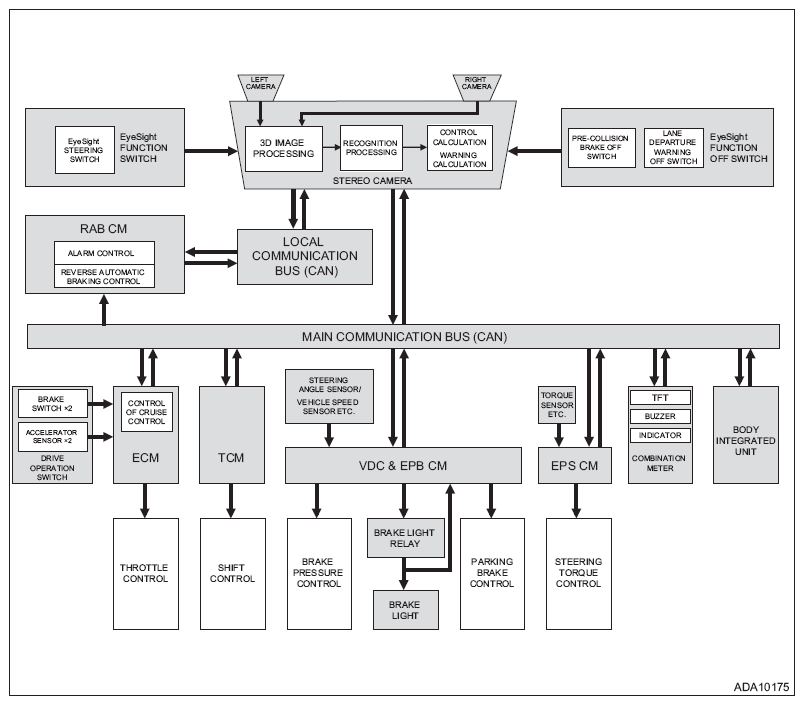

Fig 1: Stereo Camera System Block Diagram
G11581629Courtesy of SUBARU OF AMERICA, INC.
