System Block Diagram
Main signals used between DCM and relevant Control Module

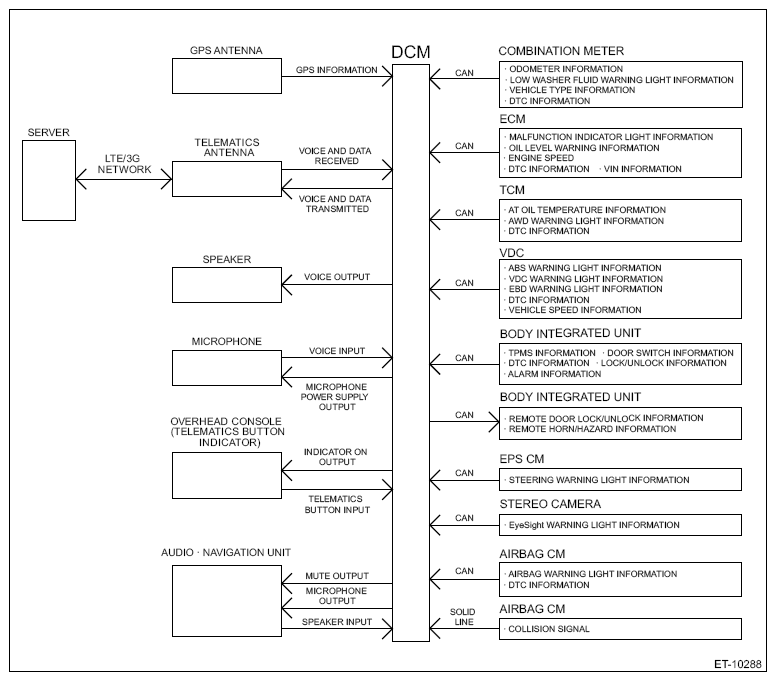

Fig 1: DCM System Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
