Auto Headlight Beam Leveler Control Module

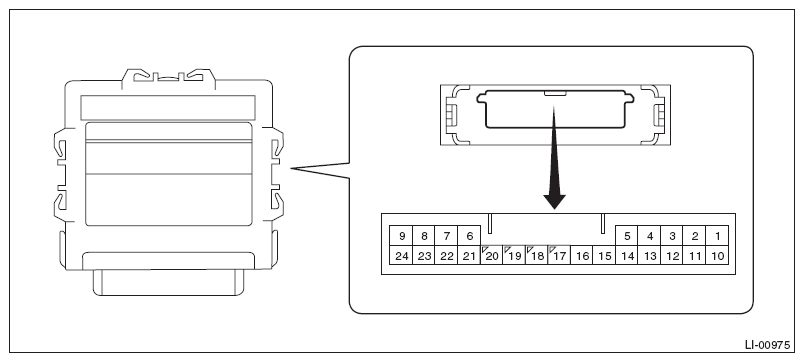

Fig 1: Auto Headlight Beam Leveler Control Module Connector Terminal - Control Module I/O Signal

Courtesy of SUBARU OF AMERICA, INC.

Contents	Terminal No.	Measuring condition	Standard
IG power supply	1 ↔ Chassis ground	Ignition switch ON	8 - 16 V
GND	2 ↔ Chassis ground	Always	Less than 1 Ω
Rr vehicle height sensor GND	3 ↔ Chassis ground	Always	Less than 1 Ω
RH headlight malfunction signal	5 ↔ Chassis ground	Always	1 MΩ or more
Leveling actuator power supply	10 ↔ Chassis ground	Ignition switch ON	10 - 16 V
Leveling actuator GND	11 ↔ Chassis ground	Always	Less than 1 Ω
Rr vehicle height sensor power supply	12 ↔ 3	Ignition switch ON	4.75 - 5.25 V
LH headlight malfunction signal	16 ↔ Chassis ground	Always	1 MΩ or more
Leveling actuator signal	17 ↔ Chassis ground	Headlight off → on	Less than 1 V → 1.0 - 14.4 V (for 17 seconds)
Leveling actuator signal	17 ↔ Chassis ground	Headlight on, no vehicle height change → change and hold vehicle height for 3 seconds or more	Less than 1 V → 1.0 - 14.4 V (for 17 seconds)
Rr sensor signal	19 ↔ Chassis ground	IG ON (with no passenger, no load and vehicle stopped)	Approx. 2.5 V (changes according to vehicle condition)
CAN-H	23	Cannot be measured (CAN communication line)	-
CAN-L	24	Cannot be measured (CAN communication line)	-
