Exploded View
Fig 1: Front Suspension Member Components With Torque Specification (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

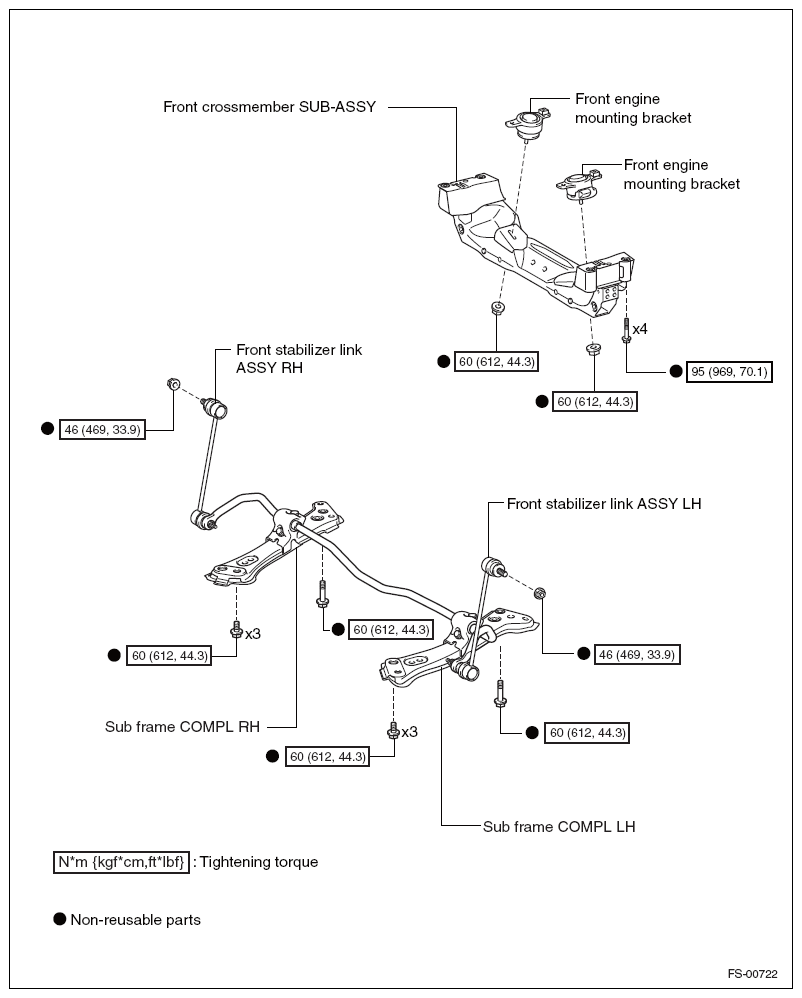

Fig 2: Front Suspension Member Components With Torque Specification (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

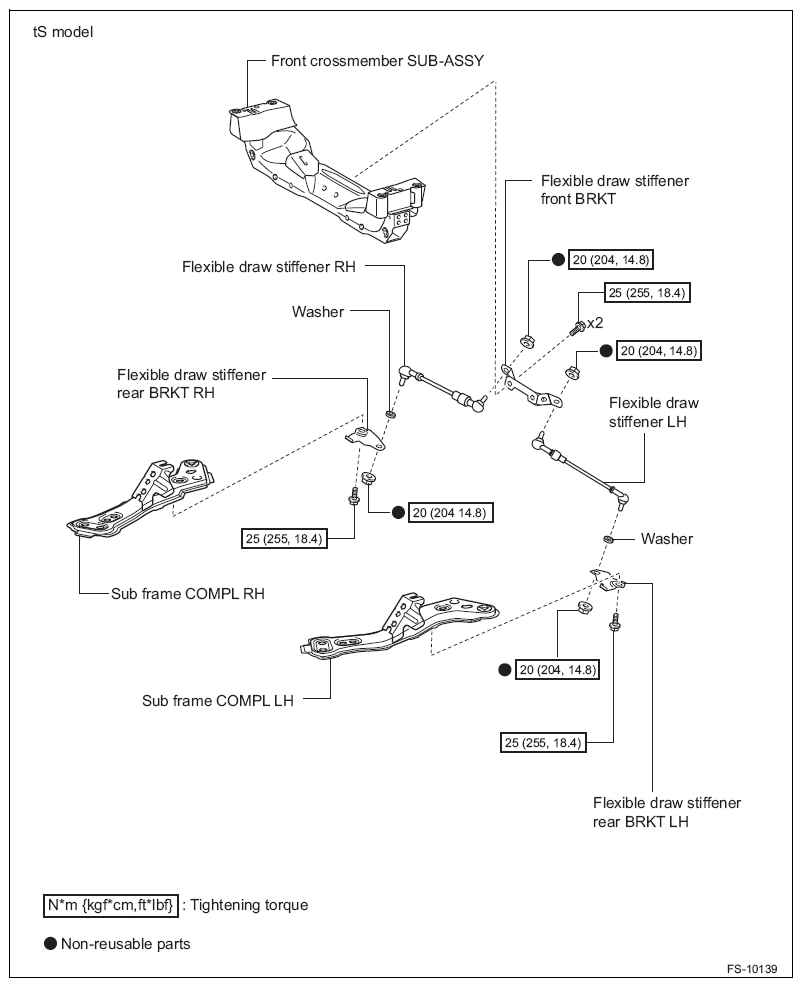

Fig 3: Front Suspension Member Components With Torque Specification (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
