Exploded View

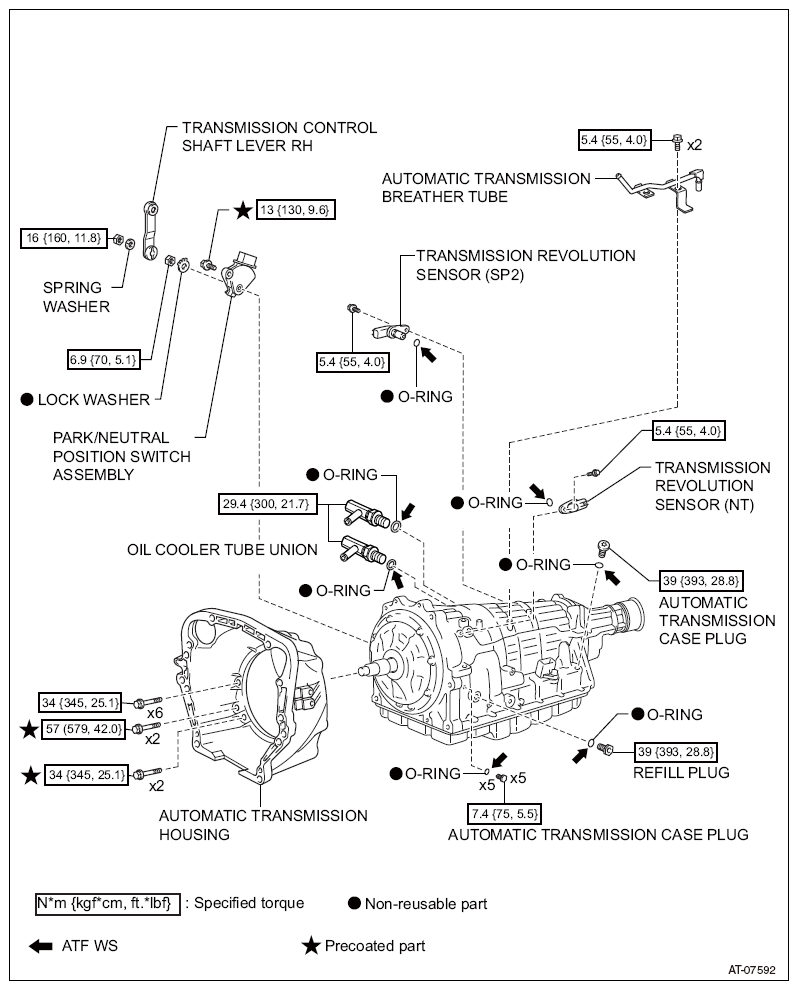

Fig 1: Automatic Transmission Unit Components With Torque Specification (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

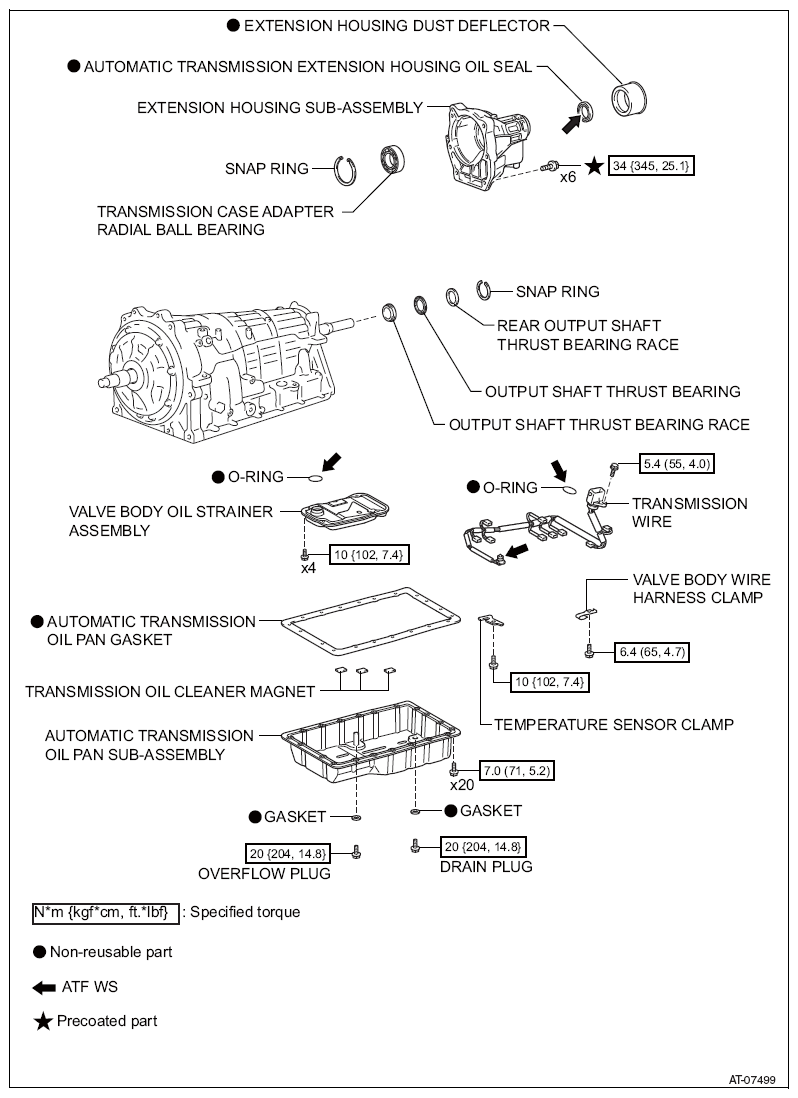

Fig 2: Automatic Transmission Unit Components With Torque Specification (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

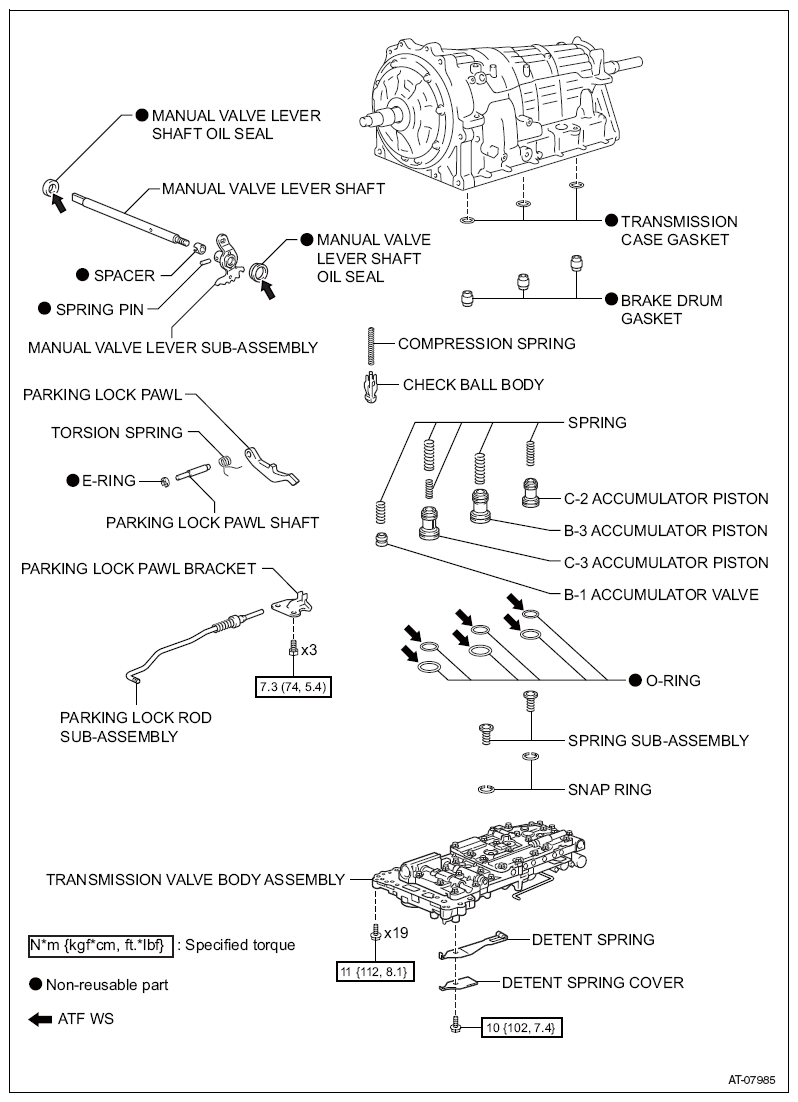

Fig 3: Automatic Transmission Unit Components With Torque Specification (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Automatic Transmission Unit Components With Torque Specification (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
