Exploded View

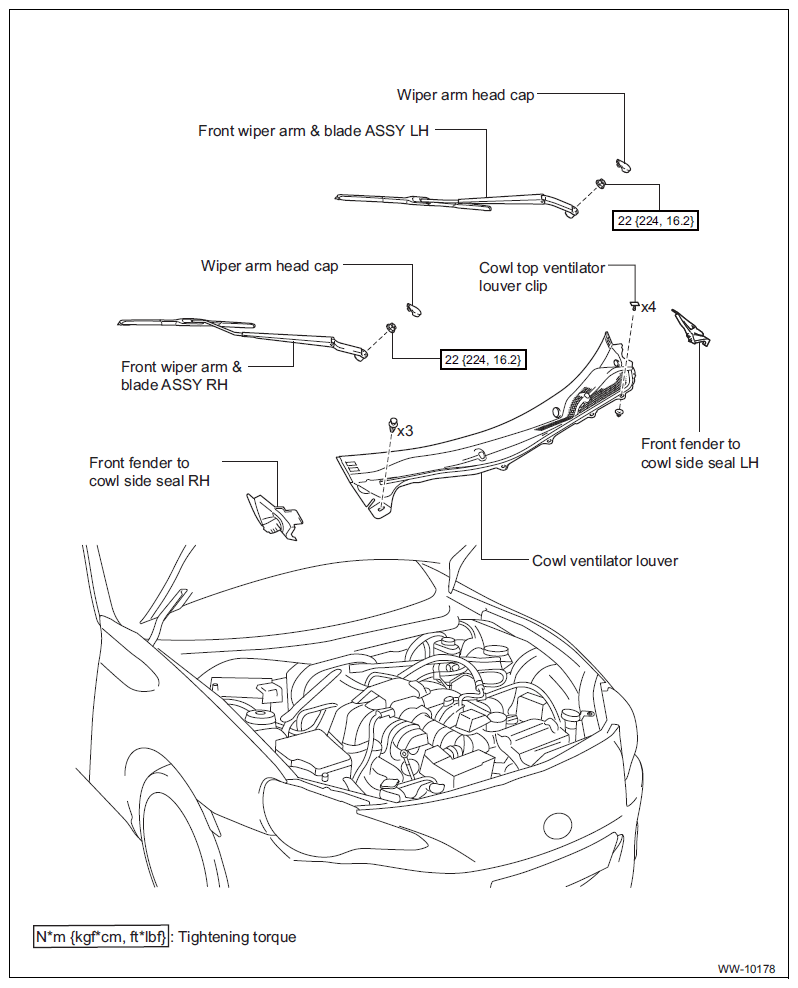

Fig 1: Windshield Glass Components With Torque Specification
G11262610Courtesy of SUBARU OF AMERICA, INC.
G08555606Courtesy of SUBARU OF AMERICA, INC.
